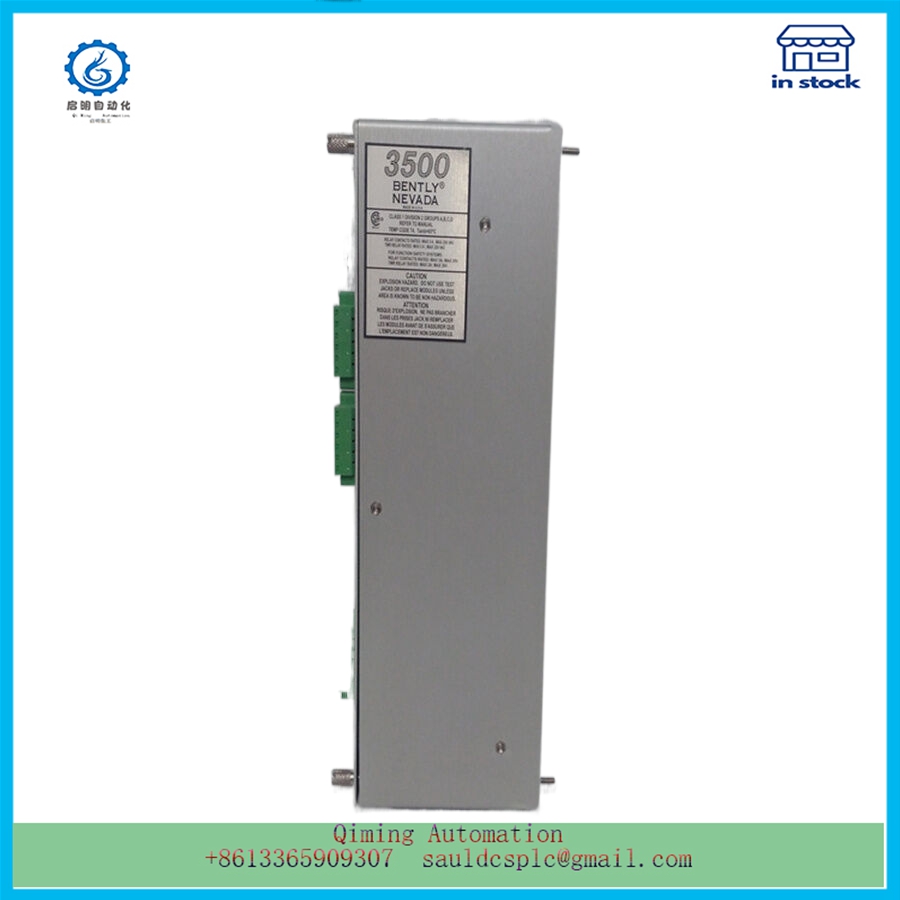

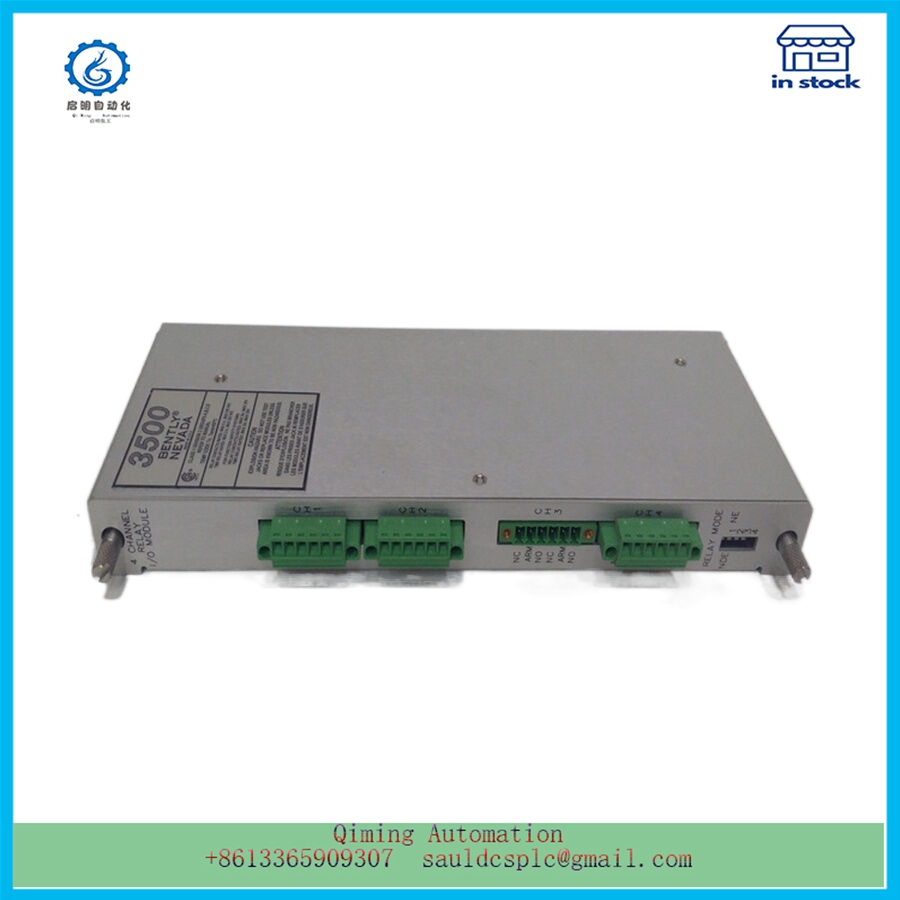

125720-01 | BENTYLY | Application Integration FDT Framework

Description

125720-01 | BENTYLY | Application Integration FDT Framework

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The communication DTM supports any new protocol and has become a part of the hardware catalog of the PLC programming platform. This method allows for hiding the internal details of the protocol from the user interface. As long as the communication DTM supports it, users can add any available devices that have been installed in the system. The FDT framework works like an abstraction layer, allowing the system to seamlessly access the connected devices. 125720-01 Each device DTM can be accessed through the corresponding communication DTM.

When connecting to a remote I/O system or fieldbus, a gateway DTM must be installed below the communication DTM in the topology. This allows remote I/O modules or specific fieldbus devices to be added to the system by connecting them to the corresponding gateway DTM, 125720-01. The main advantage is that all fieldbus interface details are hidden by the framework application, making it invisible to users and only serving as an abstraction layer for the fieldbus protocol connecting smart devices.
FDT compliant controllers can use this method to equip different gateways and communication DTMs for each required protocol.
