125800-01 | BENTLY | Keyphasor input/output module

Description

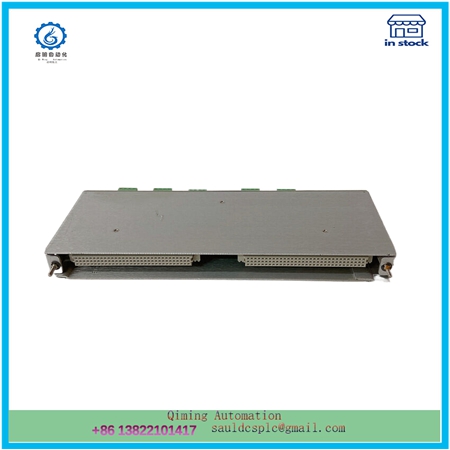

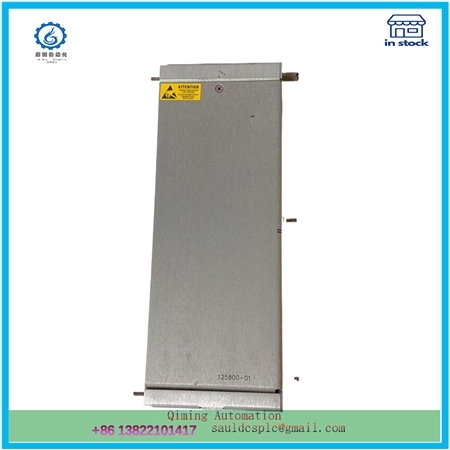

BENTLY 125800-01 module is a Keyphasor input/output (I/O) module developed by Bently Nevada Corporation and is part of the 3500 series. The following is a detailed introduction to the module:

1、 Product Overview
Part number: 125800-01
Manufacturer: Bently Nevada
Series: 3500
Product type: Keyphasor I/O module (internal terminal)
Supply situation: Usually in stock (depending on the supplier’s situation)
2、 Product features and functions
Keyphasor signal processing:
This module is used to receive and process key phase signals from the shaft. When the Keyphasor marker on the axis aligns with the Keyphasor sensor, the module is able to detect this alignment and convert the input signal into a digital Keyphasor signal.

Dual channel design:
As a dual channel module, it is capable of processing two independent key phase signals within a single unit, improving the flexibility and efficiency of the system.
Integration and compatibility:
This module is part of the 3500/25 enhanced Keyphasor module and can be seamlessly integrated into the 3500 mechanical protection system. For regular settings, the 3500 system can accept up to four Keyphasor signals; For paired configurations, a maximum of eight are acceptable.
Communication interface:
This module usually has a communication interface that can transmit vibration data to the monitoring system or control room for real-time monitoring and alarm.
3、 Application Fields
BENTLY 125800-01 module is widely used in various industrial fields, especially in environments that require precise monitoring of the operating status of rotating machinery equipment, such as:

Power plant
Oil and gas production
Chemical factory
manufacturing
In these fields, this module plays an important role in ensuring the safe and reliable operation of equipment and preventing potential failures.

4、 Specification parameters (taking a certain release information as an example)
Size: 170mm x 105mm x 32mm (may vary slightly from different sources)
Weight: Approximately 120g
Input voltage range: 12-48VDC
Output voltage range: 5VDC
Output current: maximum 10A
Efficiency: greater than 90%
Operating temperature: -20 ° C to+50 ° C
Storage temperature: -40 ° C to+70 ° C
Environmental humidity: 5% to 95% relative humidity (no condensation)
CPU: 32-bit RISC processor
Please note that specifications may vary due to product updates or different suppliers. It is recommended to confirm the latest specifications with the supplier before purchasing.

5、 Summary
BENTLY 125800-01 module, as a professional Keyphasor I/O module, plays an important role in monitoring and protecting rotating mechanical equipment. Its high precision, high reliability, and wide range of applications make it one of the preferred products in the field of industrial monitoring.
