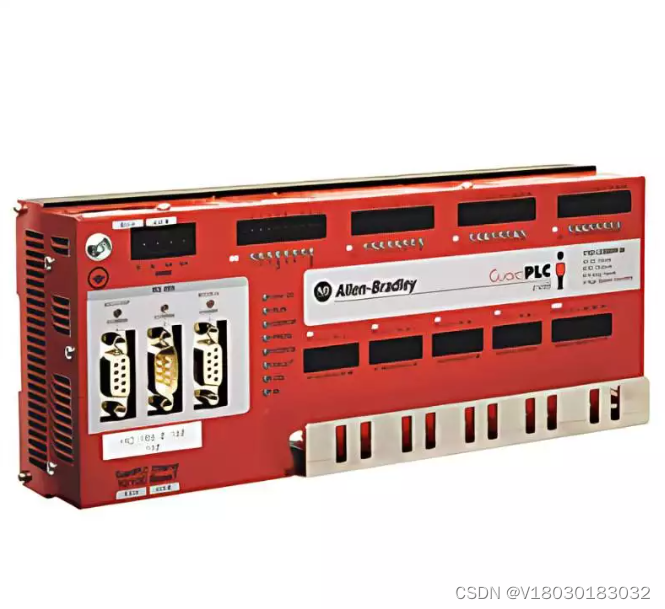

1753-IB16 |Allen-Bradley | GuardPLC controller safety system

Description

1753-IB16 |Allen-Bradley | GuardPLC controller safety system

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Technical Specifications for 1753-IB16

ManufacturerRockwell Automation

BrandAllen-Bradley

Part Number/Catalog No.1753-IB16

Product TypeDigital Input Module

Product SeriesDistributed I/O

Guard PLC Ethernet Interfaces2 x RJ-45, 10/100BaseT (with 100 Mbps) with integrated switch

Digital Inputs16

Operating Voltage24V DC

Response Time? 10 ms

Current Consumption0.8 A max.

Input Switching Point7.5V

Input Switching Time250 s

Pulse Test Sources4

Output Voltage Range24V

Output Current60 mA

Weight0.7 kg

Dimensions114 x 152 x 66 mm

UPC10612598171290

The 1753-IB16 GuardPLC Digital Input Module is a product of Allen-Bradley’s Rockwell Automation. It operates on 24 Volts DC and has 16 Inputs. The 1753-IB16 digital input module has 16 input channels with a GuardPLC controller. This digital input/output module features distributed I/O modules that are used with the GuardPLC controllers. It has eight positive-switching digital outputs, eight digital inputs, two pulsed outputs, and two negative-switching digital outputs. This GuardPLC system is a modern safety system that offers easy and simple safety PLC fast controller all through, and fastest safety network accessible. The 1753-IB16 is designed in line with IEC 61131 requirement. This GuardPLC system adheres to the global standard requirements for programmable controls and also conforms to most of the latest worldwide safety standards as well as standard requirements for functional safety when it comes to programmable electronic systems.
