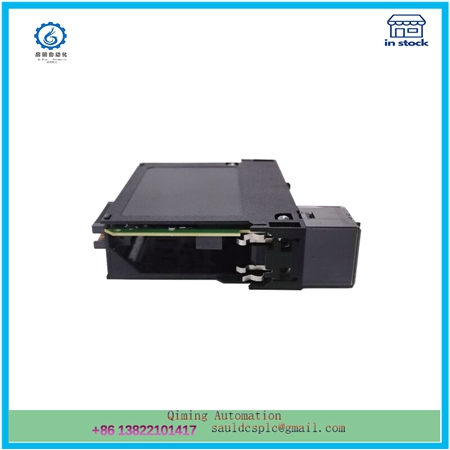

1756-IF16 | Allen-Bradley | ControlLogix Analog Module

Description

The 1756-IF16 is an analog input module from Allen-Bradley, which is part of Rockwell Automation. This module is designed for use with the ControlLogix programmable automation controllers (PAC) and is used to interface with various analog input signals in industrial applications. Here are some key features and details regarding the 1756-IF16 module:

### Key Features:

1. **Input Channels**: The 1756-IF16 module provides 16 analog input channels. This allows for the measurement and processing of multiple analog signals from sensors, transducers, or other devices.

2. **Signal Types**: It typically supports various signal types, including:
– Voltage (e.g., 0 to 10 V)
– Current (e.g., 4 to 20 mA)
– Other user-defined ranges depending on the configuration.

3. **Resolution and Accuracy**: The module generally features a high resolution (around 16 bits), providing accurate readings. This is critical for applications that require precision in monitoring and control.

4. **Isolation**: The 1756-IF16 module usually includes isolation between channels and from the system’s backplane, providing protection against voltage spikes and ground loops.

5. **Configuration**: Users can configure the module through the Rockwell Automation software (like RSLogix 5000 or Studio 5000). Configuration options may include setting channel ranges, calibrating inputs, and defining alarm thresholds.

6. **Status Indicators**: The module comes equipped with LED indicators to provide real-time status information, including power status and fault indicators.

7. **Communication**: The module communicates with the ControlLogix CPU over the backplane, allowing for seamless integration within a control system.

### Applications:

The 1756-IF16 is commonly used in various industries for applications such as:

– Process control
– HVAC systems
– Water and wastewater treatment facilities
– Oil and gas
– Manufacturing and assembly lines

### Benefits:

Using the 1756-IF16 module provides several benefits:

– **Flexibility**: Supports various analog signal types, making it suitable for multiple applications.
– **Scalability**: Can be easily integrated into a ControlLogix environment, allowing for expanding the system as needed.
– **Reliability**: High accuracy and isolation features contribute to reliable performance in demanding environments.

### Installation and Maintenance:

For installation:

– Ensure proper mounting within the ControlLogix racks.
– Follow the wiring guidelines for connecting to sensors or devices correctly.
– Ensure necessary grounding and compliance with electrical codes to maintain safety.

For maintenance, regularly check:

– Connections and wiring for wear or damage.
– Status indicators for any fault conditions.
– Proper calibration of input signals to maintain accurate readings.

### Technical Documentation:

For more detailed specifications, installation instructions, and operational guidelines, refer to the official documentation provided by Rockwell Automation, such as the operation manual or installation instructions for the 1756-IF16 module.

If you have more specific questions or need additional information regarding the 1756-IF16 module, feel free to ask!
