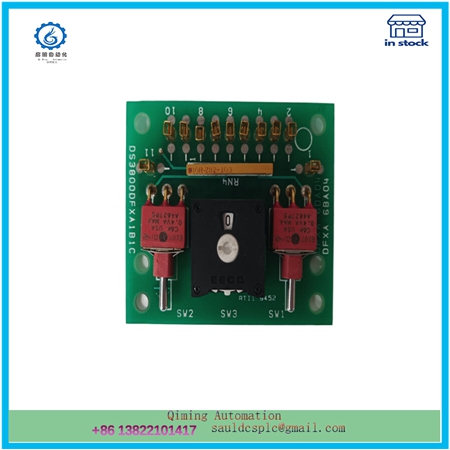

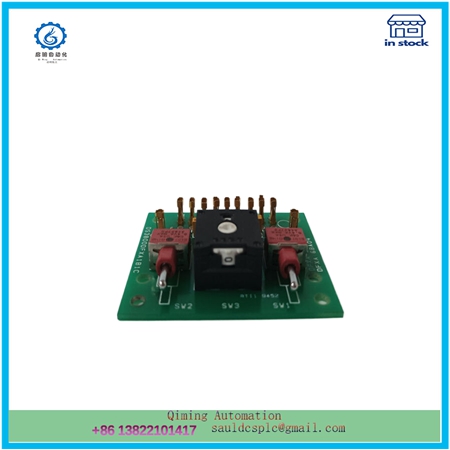

GE DS3800DFXA1B1C electrical input/output module

Description

GE DS3800DFXA1B1C is an electrical input/output (I/O) module commonly used in industrial control and automation systems. The following is detailed information about this module:

Basic specifications
Input voltage range: 12-48VDC
Output voltage range: 5VDC
Output current: maximum 10A
Efficiency: greater than 90%
Dimensions: 170mm x 105mm x 32mm
Weight: approximately 120g
Operating temperature: -20 ° C to+50 ° C
Storage temperature: -40 ° C to+70 ° C
Environmental humidity: 5% to 95% relative humidity (without condensation)
CPU: 32-bit RISC processor
Functional characteristics

Input/output function: This module can receive and send various types of signals, such as analog and digital signals, to achieve communication and control with various sensors and actuators.
Strong compatibility: Supports multiple protocols such as Modbus, Profibus, etc., and can communicate with different types of control systems and devices.
Easy to configure: With a simple configuration interface, users can set parameters and configure module functions through a graphical interface or command-line interface.
High reliability: With high reliability and stability, it can operate stably for a long time under harsh environmental conditions. In addition, it also has fault diagnosis and protection functions to ensure the safety and stability of the system.
Easy to maintain: The design makes it easy to maintain and replace, and manufacturers usually provide technical support and user manuals to help users better maintain and use the module.
application area
GE DS3800DFXA1B1C is widely used in the following fields:

Industrial automation control
Power system control
Robot control
Wind power control system
In addition, this module is often used in fields such as power generation, manufacturing, chemical industry, oil and gas, water treatment, etc.

matters needing attention
Working voltage: It is necessary to pay attention to confirming whether the power supply voltage meets the requirements.
Connection signal: When connecting input signals, the signal input format needs to be selected according to the actual situation.
Programming function: Program alarm and trigger functions according to requirements.
Installation and wiring: Ensure correct installation and wiring to avoid misoperation or damage to equipment.
