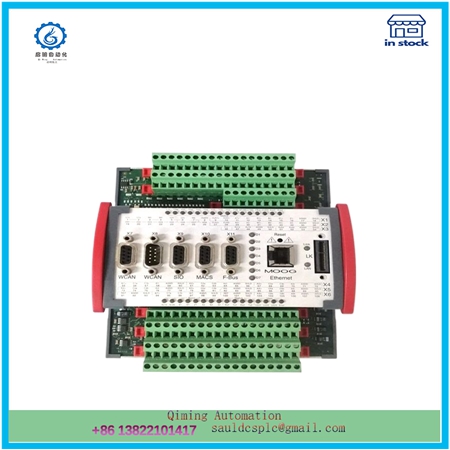

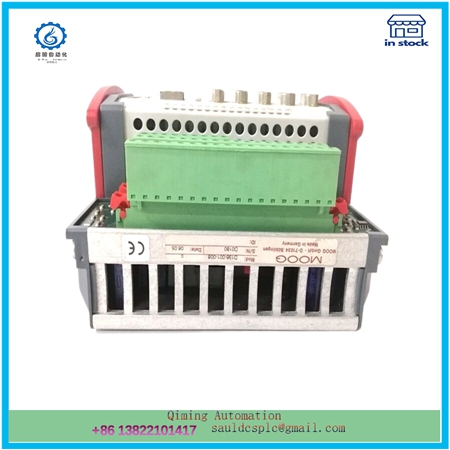

MOOG D136-001-008 SERVO CONTROLLER

Description

MOOG D136-001-008 Controller Report

1、 Technical specifications

Processor: onboard enhanced low-power NS GX series CPU 300MHz.
System chipset: GX1-300B+NS CS5530A.
System memory: 64M onboard, equipped with a 144 pin SO-DIMM memory expansion slot.
Video support: Supports CRT and 18bit TFT LCD display; The CRT resolution can reach 1280 x 1024 x 8bpp, and the TFT resolution can reach 1280 x 1024 x 18bpp.
Network interface: On board LAN – Realtek RTL8100BL 10/100M Ethernet controller RJ-45 interface.
I/O interfaces: including IDE controller, USB interface, multiple I/O interfaces (FDD, parallel port, IRDA, serial port, etc.), PS/2 keyboard/mouse interface, etc.
Digital I/O: 2-digit digital input, 2-digit digital output.
Power requirements: AT or ATX, single 5V power supply.
Working temperature: 0-60 ℃ (32-140F).
2、 Functional characteristics

Multi axis motion control: capable of controlling multiple motion axes to achieve complex mechanical movements.
High performance computing: With high-performance computing capabilities, it meets the requirements of high-speed and high-precision motion.
Real time control: Provides real-time control to ensure rapid response of mechanical systems to input signals.
Programming flexibility: Users can use programming languages or graphical interfaces to write and adjust motion control programs.
Motion interpolation: Supports motion interpolation technology to coordinate smooth motion between axes.
Data collection and monitoring: Real time monitoring of the position, speed, and status of the motion axis.
3、 Application scenarios

Industrial automation: suitable for multi axis control needs on factory automation production lines.
Aerospace: Precision control systems that can be used in the aerospace field.
Medical equipment: achieving precise motion control in medical equipment.
Energy field: suitable for the control and monitoring of energy equipment.
