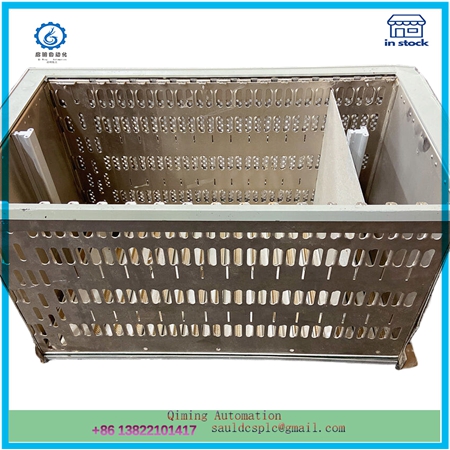

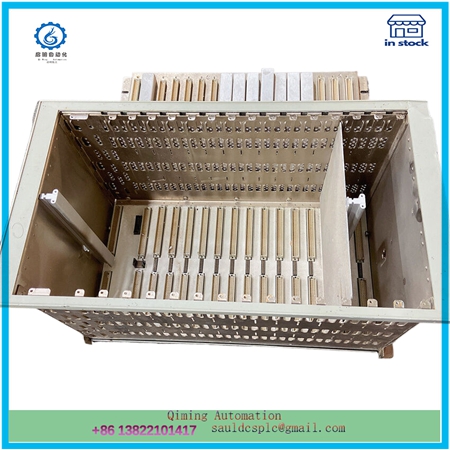

3500-05-01-03-00-00-00 | BENTLY | communication framework

Description

Regarding the BENTLY 3500-05-01-03-00-00-00 framework, the following are some key information and features:

1、 Overview
The BENTLY 3500-05-01-03-00-00-00 framework is part of Bently Nevada’s 3500 series monitoring system, which is widely used for condition monitoring and protection of rotating and reciprocating machinery. As the core component of the system, this framework is responsible for installing and connecting other modules such as power modules, monitoring modules, relay modules, and communication gateways to achieve comprehensive monitoring of machine operation status.

2、 Composition and Function
The BENTLY 3500-05-01-03-00-00-00 framework typically includes the following key components:

Framework body: As the installation foundation of the system, it provides a modular slot structure for easy installation and disassembly of various monitoring modules.
Power module: such as the 3500/15 series power module, provides stable power supply for the entire system to ensure the normal operation of each module.
Monitoring module: including displacement module (such as 3500/40M), vibration module (such as 3500/42M), differential expansion module (such as 3500/45M), speed module (such as 3500/50M), etc., used for real-time monitoring of key parameters such as shaft vibration, axial displacement, differential expansion, and speed.
Relay module: such as 3500/32M or 3500/33 module, used to trigger alarms or perform other protective actions when monitoring parameters reach preset thresholds.
Communication gateway: such as 3500/92 module, used for data communication with other systems or devices to achieve remote monitoring and fault diagnosis.

3、 Characteristics and advantages
Modular design: Easy to expand and upgrade the system, users can flexibly configure monitoring modules according to their actual needs.
High Security: Compliant with international safety standards, suitable for various harsh industrial environments.
Powerful function: capable of continuously measuring and monitoring various mechanical operating status parameters, providing timely warning and mechanical protection.
Easy to configure: System 1 software allows for easy configuration of system parameters and monitoring logic.
4、 Application scenarios
The BENTLY 3500-05-01-03-00-00-00 framework is widely used for monitoring key equipment in industries such as oil and gas, power, metallurgy, and chemical engineering, such as monitoring and protecting the status of rotating machinery such as turbines, compressors, and generators.

5、 Price and Purchase
The specific price of BENTLY 3500-05-01-00-00-00-00 framework may vary due to factors such as market supply, promotional activities, and purchase quantity. It is recommended to directly contact Bently Nevada Corporation or its authorized distributor for the latest quotation information.

In summary, the BENTLY 3500-05-01-03-00-00-00  framework is a key component of Bently Nevada’s 3500 series monitoring system, characterized by modular design, high safety, and powerful functionality. It is widely used for mechanical condition monitoring and protection in various industrial fields.
