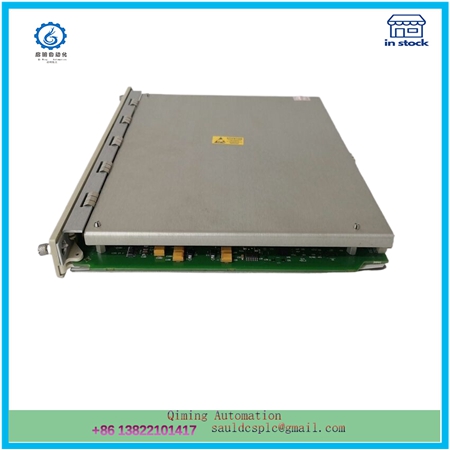

3500/22M 138607-01 | BENTLY| Transient Data Interface (TDI) Module

Description

3500/22M 138607-01 | BENTLY| Transient Data Interface (TDI) Module

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Regarding the “3500/22M 138607-01” module, the following are some key information:
1、 Module Overview
Product Name: 3500/22M 138607-01 Transient Data Interface (TDI) Module
Manufacturer: Bently Nevada
Function: This module is the interface between the 3500 monitoring system and compatible software (such as System 1 status monitoring and diagnostic software, 3500 system configuration software). It combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data acquisition capabilities of communication processors (such as TDXnet) for continuous acquisition of steady-state and transient dynamic data, which is transmitted to the host software via an Ethernet link.

2、 Technical features
Data collection: capable of continuously collecting steady-state and transient dynamic data, including waveform data.
Communication capability: Integrated communication processor function, communicates with host software through Ethernet.
Compatibility: Seamless integration with 3500 monitoring system and multiple compatible software.
Static data capture: As a standard configuration, it can capture static data; Enable the disk using optional channels to capture dynamic and high-resolution transient data.
Non critical monitoring path: Although it provides certain general functions, it is not part of the critical monitoring path and has no impact on the normal operation of the automatic mechanical protection monitoring system.
