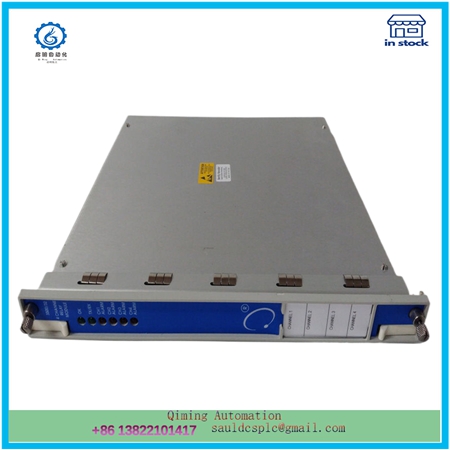

3500/32 |BENTLY NEVADA | 4-channel relay module

Description

3500/32 |BENTLY NEVADA | 4-channel relay module

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

BENTLY 3500/32 is a 4-channel relay module mainly used for mechanical status monitoring and protection systems in industrial automation. The following is a detailed analysis of it:

1、 Basic parameters and specifications

Model: BENTLY 3500/32
Type: 4-channel relay module
Function: Provides four relay outputs and highly configurable relay logic interfaces for mechanical status monitoring and protection.
Relay type: Two single pole double throw (SPDT) relays connected together to form a double pole double throw (DPDT) form.
Work environment:

Working temperature: -30 ° C to+65 ° C
Storage temperature: -40 ° C to+85 ° C
Humidity: 95%, non condensing
2、 Functional characteristics

High configurability: Each of the four outputs can be independently programmed to enable voting by configuring alarm drive logic for each relay.
Alarm driven logic: programmed using AND and OR logic, can use any combination of alarm inputs (warning or danger) from any monitoring channel or monitoring channel in the rack.
Easy to use: Provides an easy-to-use interface for highly configurable AND/OR logic combinations, including “normal” and “true” and voting options, as well as blocking relay channel options.
Widely used: widely used in fields such as power generation, chemical industry, petroleum, water treatment, etc., for monitoring and protecting critical equipment.
3、 Technical specifications

Input power consumption: generally 6 watts

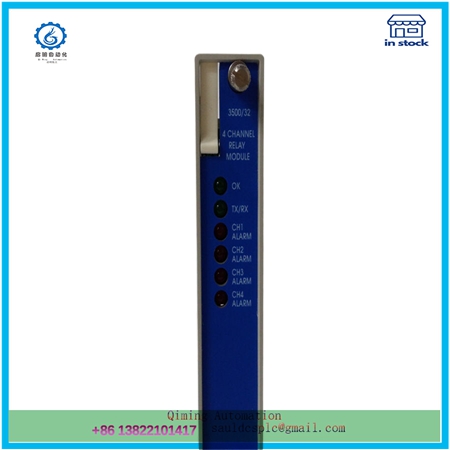

LED indication:
OK LED: Flashes when the module is working properly
TX/RX LED: used for transmission and reception, flashing when the communication between this module and other modules in the frame is normal
CH Alarm LED: Flashes when the relay channel is in an alarm state
Contact life: 100000 times @ 5A, 24Vdc or 120Vdc
Arc extinguishing condition: 250Vrms
