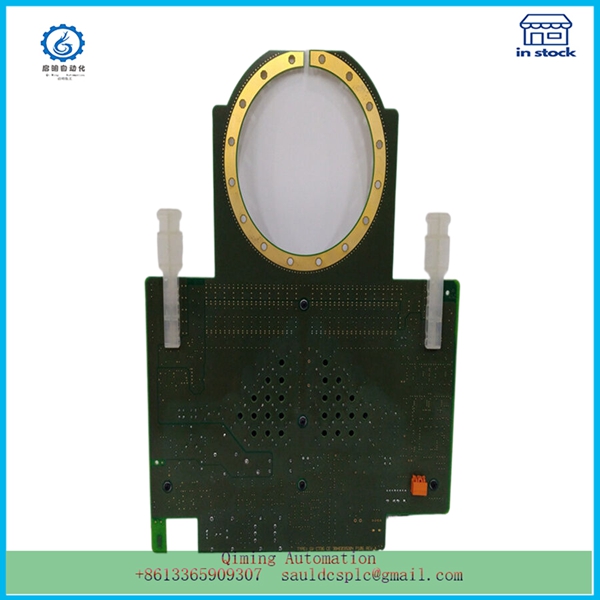

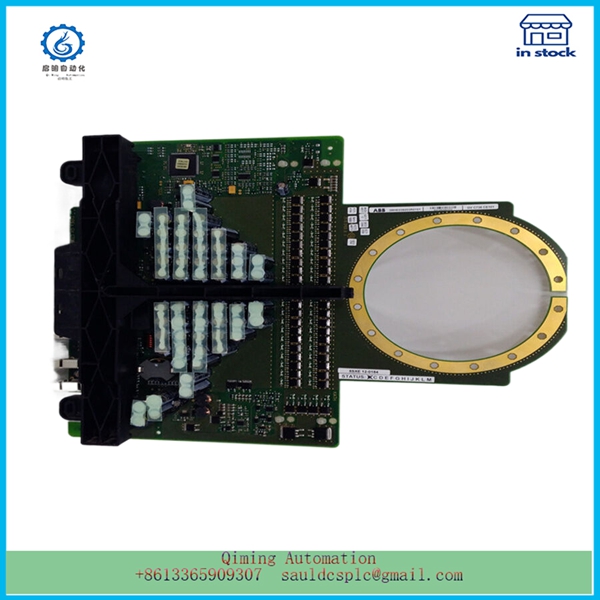

3BHE039203R0101 5SXE12-0184 GVC736CE101 | ABB | can bus transceiver

Description

3BHE039203R0101 5SXE12-0184 GVC736CE101 | ABB | can bus transceiver

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The conversion between RS-422 level and CAN standard logic level has been achieved, and 3BHE039203R0101 5SXE12-0184 GVC736CE101 system software has also achieved the conversion between RS-422 and CAN frame formats. The CPU in the system is AT89C52 microcontroller.

Chip MAX1490B completes the conversion between RS-422 and TTL logic levels, while chip SJA1000 completes the conversion between TTL logic levels and CAN logic levels. In MAX1490B, complete electrical isolation is achieved on the TTL and RS-422 sides, with A and B as its RS-422 input terminals, Y and Z as its RS-422 output terminals, DI as the isolated TTL drive input, RO as the isolated TTL output terminal, and 3BHE039203R0101 5SXE12-0184 GVC736CE101’s internal DCPDC converter achieves electrical isolation of input and output without the need for external isolation power supply. 82C250 is a CAN bus communication controller that implements the physical layer and data link layer of CAN. It is a CAN bus transceiver that can support up to 110 nodes of CAN bus load.
