8200-1300 | WOODWARD | 505 DIGITAL CONTROL

Description

The WOODWARD 8200-1300 governor is a governor produced by Woodward, widely used to control the speed of engines, turbines, generators, or other rotating equipment. The following is a detailed introduction to the governor:

1、 Product Overview
Brand and Model: WOODWARD 8200-1300
Production company: Woodward
Type: Electronic Governor
Purpose: To control single or dual (split range) actuator steam turbines, ensuring reliable operation of the equipment under different loads and working conditions.
2、 Main features
Power supply: Use LVDC (18-32 VDC) power supply that meets the standard, suitable for non hazardous locations and also for Class I, Div. 2, Group A/B/C/D positions.
Operation interface:

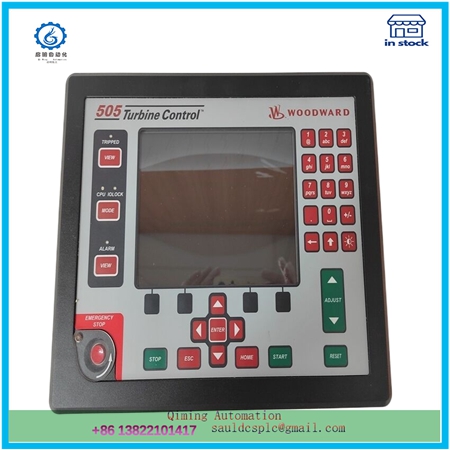

Integrated graphic front panel HMI, including graphic control panel display screen and keyboard.
The operator control panel is equipped with emergency stop buttons, start, stop, ESC and home buttons, numeric keypad, and toggle up/down buttons.
Control Algorithm: Five PID controllers are designed, including speed/load PID controller, cascade PID controller, and AUX1 and AUX2 PID controllers, to achieve precise process control.
Communication interface: It may have multiple communication interfaces, such as Modbus, for exchanging data with other devices or systems.
Programmable: Field programmable, using menu driven software to control mechanical drive applications and/or generators, allowing a single design to be used for many different control applications, reducing costs and shortening delivery times.

Monitoring and Diagnosis: May have monitoring and diagnostic functions to help monitor the health status of equipment, detect potential problems in advance, and take maintenance measures.
3、 Application Fields
WOODWARD 8200-1300 speed controller is widely used in fields that require precise speed control, such as:

Steam turbine control in thermal power plants
Ship power system
Heavy Industry Process Control
4、 Product advantages
High stability and accuracy: ensuring reliable operation of the equipment under different working conditions.
Versatility: Suitable for different types of process control and automation tasks.
Real time performance: Supports real-time operations and can respond to input signals within milliseconds.
Reliability and Durability: Adapting to the requirements of industrial environments, it has high reliability and durability.

5、 Price and purchasing advice
The price of WOODWARD 8200-1300 speed controller varies due to factors such as suppliers and promotional activities. Specific prices need to be inquired from suppliers to obtain the latest quotation. It is recommended to choose legitimate channels when purchasing to ensure product quality and after-sales service.

In summary, WOODWARD 8200-1300 speed controller is a powerful and stable speed controller product, widely used in various situations that require precise speed control.
