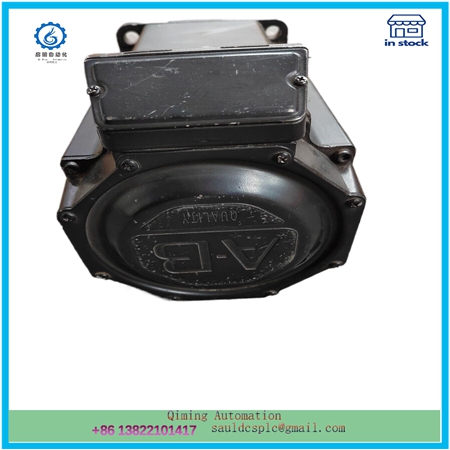

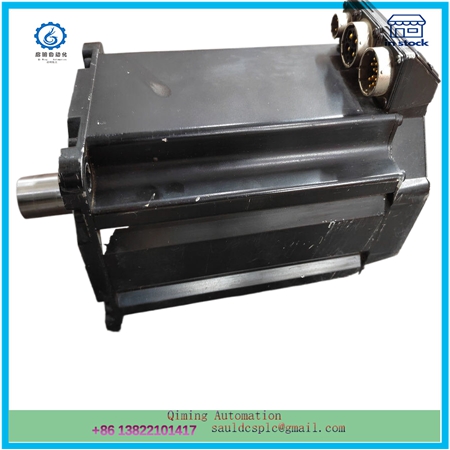

A-B MPL-B540K-SJ24AA/A permanent magnet rotary servo motor

Description

The A-B MPL-B540K-SJ24AA/A motor is a high-quality permanent magnet rotary servo motor produced by Rockwell Automation, with low inertia characteristics, widely used in the field of industrial automation. The following is a detailed introduction to the motor:

1、 Basic information
Model: MPL-B540K-SJ24AA/A
Brand: A-B (Allen Bradley)
Manufacturer: Rockwell Automation
Series: MP series low inertia AC motor
2、 Product features
High performance:
This motor has excellent control performance and is equipped with a high-resolution encoder, which can achieve precise position and speed control. It is suitable for applications that require highly precise motion control, such as automation equipment, production lines, and robotic arms.
Excellent dynamic performance, able to maintain stable performance during high-speed operation, while providing high torque output to meet complex and demanding working environment requirements.
Efficient and energy-saving:
By adopting advanced control algorithms and efficient motor design, energy consumption is reduced while ensuring performance, achieving the goal of energy conservation and emission reduction.
Convenient maintenance:

Adopting modular design makes maintenance and component replacement easier.
Provide rich interfaces and communication protocols to facilitate integration and communication with other devices.
Reliability and durability:
Using high-quality materials and manufacturing processes to ensure the stability and long lifespan of the motor.
Equipped with various protective measures, such as overload protection, overheating protection, etc., effectively preventing motor failures during operation.
3、 Technical parameters
Rated voltage: 400V AC
Rated speed: 4000 RPM
Rack size: 165mm
Magnet stacking length: 101.6 millimeters
Weight: Approximately 33 pounds
Output power: Rated output power is 5.4 kW
Rotary inertia: 0.014 lb in s ²
Torque specifications: Peak stall torque of 420 pounds per inch, continuous stall torque of 172 pounds per inch
Encoder: equipped with 1024 sin/cos absolute single turn encoder, supporting Hiperface protocol
Other features: circular bayonet connector, shaft key, 24V DC brake, and IEC metric flange
4、 Usage and Maintenance
Usage environment: It should be kept dry, the surface of the motor should be clean, and the air inlet should not be obstructed by dust, fibers, etc.
Lubrication: After running the motor for a certain period of time (such as 5000 hours), lubricating grease should be supplemented or replaced.
Regular inspection: including the wear of bearings, shaft seals, and other components, and timely replacement of damaged parts.
5、 Application field
The A-B MPL-B540K-SJ24AA/A motor has been widely used in industrial automation, mechanical equipment, production line automation, and other fields due to its excellent performance and reliability.

In summary, the A-B MPL-B540K-SJ24AA/A motor is a high-performance, efficient, energy-saving, convenient to maintain, and highly reliable servo motor, suitable for various industrial automation application scenarios that require precise motion control.
