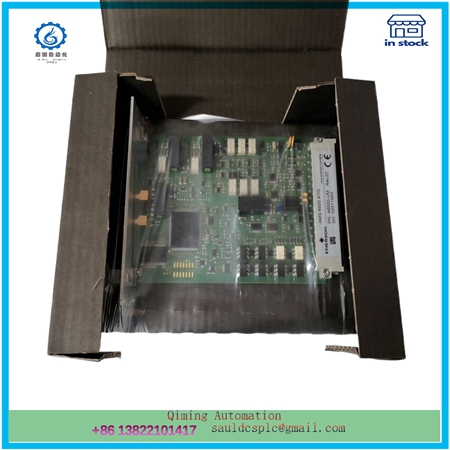

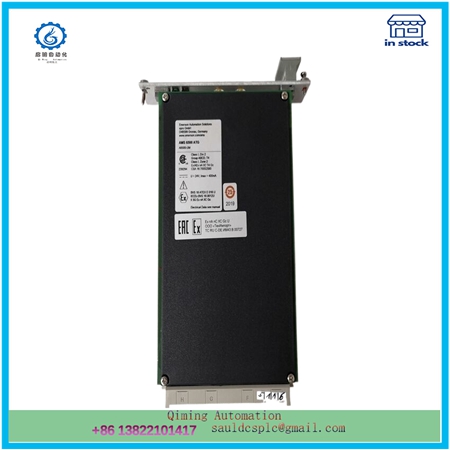

A6500-UM | EMERSON | Universal Measurement Card

Description

EMERSON A6500-UM module detailed introduction

1、 Main functions, features and advantages of the module
Main functions:

The EMERSON A6500-UM module is a high-performance intelligent monitoring module mainly used to monitor the vibration, temperature, speed, and other key parameters of rotating equipment. By monitoring and analyzing this data in real-time, this module can help users detect potential equipment failures in a timely manner, improving the reliability and safety of equipment operation.

Features and advantages:

High precision: By using high-precision sensors and data acquisition systems, the accuracy of measurement data is ensured, which helps to accurately determine the equipment status.
Multifunctionality: Supports monitoring of multiple parameters such as vibration, temperature, and speed, meeting various industrial monitoring needs.
Intelligent diagnosis: equipped with intelligent fault diagnosis function, identifying potential fault modes through data analysis, providing warning and diagnostic information.
High reliability: Adopting a sturdy and durable design, it can withstand harsh industrial environmental conditions and ensure long-term stable operation.
Easy to use: The module is easy to install and configure, provides an intuitive interface, reduces operational difficulty, and improves work efficiency.

2、 Application scenarios and applicable objects of modules
Application scenarios:

The EMERSON A6500-UM module is widely used in multiple industries such as oil and gas, electricity, steel, paper, cement, etc. In these industries, rotating equipment such as compressors, pumps, generators, etc. are the core equipment, and their operating status directly affects the stability and safety of the entire production system. The A6500-UM module provides important technical support and assurance for enterprise equipment maintenance and management through real-time monitoring of these devices.

Applicable to:

This module is suitable for all enterprises that need to monitor the status of rotating equipment, especially those with high requirements for equipment stability and safety. By installing the A6500-UM module, enterprises can monitor equipment status in real-time, detect and handle potential faults in a timely manner, thereby avoiding losses caused by production interruptions and equipment damage.

3、 Specifications, parameters and interfaces of modules
Specification parameters:

Parameter Name Value/Description
Number of channels: 2 channels
Measurement range (vibration) 0.001 g/pk to 10 g/pk
Measurement range (temperature) -40 ° C to 200 ° C (slightly different sources, subject to actual product)
Measurement range (speed) from 100 rpm to 10000 rpm
Accuracy (vibration) ± 5%
Accuracy (temperature) ± 1 ° C (slightly different from different sources, subject to actual product)
Accuracy (speed) ± 1%
Communication interface RS-485
Shell size 100 mm x 60 mm x 30 mm
Working temperature -40 ° C to 85 ° C
Storage temperature -55 ° C to 90 ° C
Protection level IP67

Interface:

This module provides RS-485 communication interface, facilitating seamless integration with other industrial automation systems and providing a unified monitoring and management platform. At the same time, the module also supports multiple configuration options and parameter settings to meet the needs of different devices and applications.

4、 Logistics information such as packaging and transportation of modules
packing:

The EMERSON A6500-UM module is typically packaged with professional industrial packaging materials to ensure it is not damaged during transportation. The packaging usually indicates the product’s model, specifications, production date, and other information to facilitate user identification and storage.

Transportation:

Due to the fact that this module belongs to precision electronic equipment, special attention should be paid to measures such as shock and moisture resistance during transportation. Generally, transportation is carried out through professional logistics companies to ensure the safe and timely delivery of products to customers. The specific transportation method and cost may vary depending on the supplier and order quantity. It is recommended that customers communicate in detail with the supplier when purchasing.

be careful:

The specific details regarding logistics information (such as transportation time, cost, etc.) may vary due to factors such as suppliers, order volume, and transportation distance. Therefore, when making actual purchases, it is recommended that customers consult with suppliers in detail to obtain the most accurate logistics information.

In summary, the EMERSON A6500-UM module has been widely used in multiple industries due to its high precision, multifunctionality, intelligent diagnosis, high reliability, and ease of use. At the same time, the module also has detailed specifications and rich interface options, making it convenient for users to choose and configure according to their actual needs. In terms of packaging and transportation, suppliers usually use professional packaging materials and transportation methods to ensure that products can be safely and timely delivered to customers.
