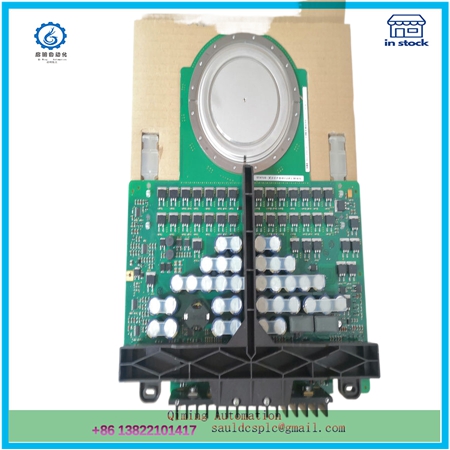

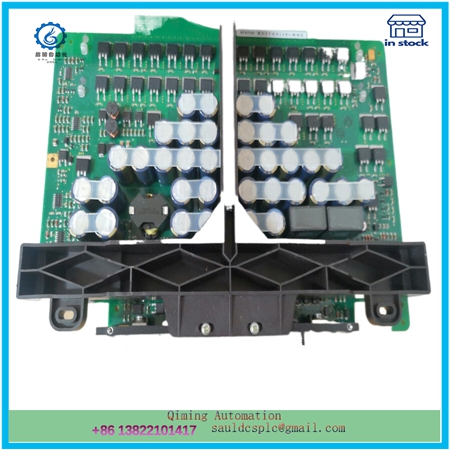

ABB 5SHY3545L0010 3BHB013088R0001 power control device

Description

The ABB 5SHY3545L0010 3BHB013088R0001 module is a powerful power control device commonly used in fields such as power transmission and distribution, renewable energy generation, power transmission systems, and industrial control. The following is a detailed introduction to this module:

1、 Basic characteristics
Model and series: ABB 5SHY3545L0010, belongs to ABB’s 5SHY series IGCT (integrated gate controlled thyristor) products.
Current and voltage parameters: The maximum rated current is 3500A and the maximum rated voltage is 4500V, demonstrating its ability to handle high-power electricity.
On/off and switching characteristics: The maximum rated on/off loss is 14000W, and the maximum rated switching frequency is 1600Hz. These parameters are crucial for the efficiency and response speed of power control.
Temperature and cooling: The maximum rated junction temperature is 175 ° C, and water cooling is used to ensure stable operation of the module in high temperature environments.
2、 Functional characteristics
Current and voltage control: This module can precisely control the conduction of current and voltage, allowing their flow in the circuit to be adjusted as needed to meet various power control needs.
Current and voltage limitation: With current and voltage limitation functions, it ensures that the system operates within a safe range and prevents overload and short circuit faults from occurring.
High response speed: able to quickly adjust current and voltage to adapt to changes in system requirements and improve the dynamic response capability of power control.
Overheat protection: Some modules are equipped with overheating protection function to avoid overheating damage and ensure the safety and reliability of the modules.
Communication interface: Equipped with communication interface, it can be integrated with other control systems to achieve remote monitoring and control, and improve the automation and intelligence level of the system.
Programmability: Allow users to customize configurations and logic to meet specific application requirements, increasing module flexibility and adaptability.

3、 Application scenarios
The ABB 5SHY3545L0010 module is widely used in various situations that require high-power power control, such as:

Power transmission and distribution: Undertake the task of power regulation and distribution in the power grid, ensuring stable power supply.
Renewable energy generation: In renewable energy generation systems such as wind power and photovoltaics, it is used to control the output and grid connection of electricity.
Electric power transmission system: In the electric motor drive system, precise control and regulation of electrical energy are achieved to improve the efficiency and performance of the transmission system.
Industrial control: As a key power control component in industrial automation control systems, it ensures the stable operation and efficient production of production lines.
4、 Usage and Maintenance
Installation and cooling: During installation, the cabinet must have sufficient space to ensure sufficient cooling of the components. The air inlet and outlet must be equipped with grilles to guide air circulation and prevent water from splashing into the cabinet.
Maintenance and management: Due to the communication interface and programmability of the module, remote monitoring and control can be easily achieved, reducing maintenance difficulty and cost. Meanwhile, the high reliability and stability of the module also reduce the probability of faults occurring.
In summary, ABB 5SHY3545L0010 module is a powerful and stable power control equipment that can meet various high-power power control needs.
