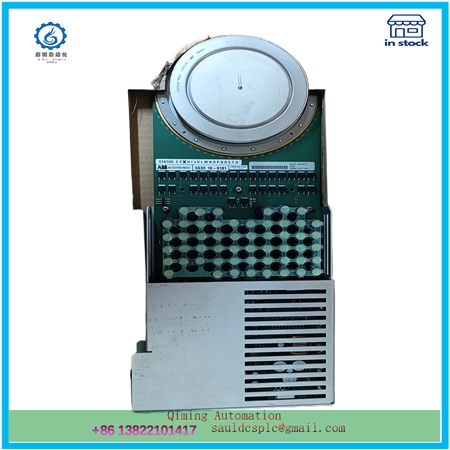

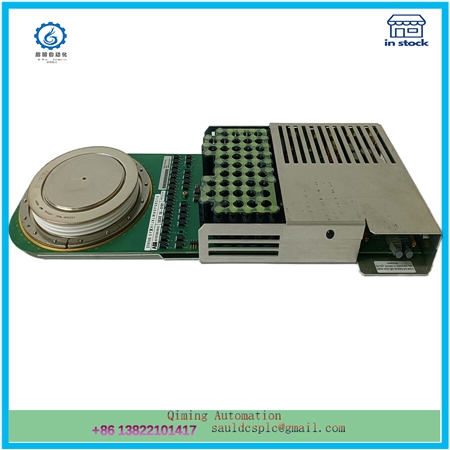

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 IGCT module

Description

The ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101module is a high-power density IGCT (Integrated Gate Commutated Thyristor) module designed specifically for mid frequency applications and has high electromagnetic immunity. The following is a detailed introduction about the ABB 5SHY35L4520 module:

1、 Main features
High power density: IGCT modules are designed for high-power applications, providing efficient energy conversion to meet high-power requirements.
High voltage capability: Supports high voltage circuits, usually used in power electronic equipment and high-voltage frequency converters, with a rated voltage of up to 4500V (V DRM).
High reliability: Adopting advanced packaging and heat dissipation design, providing stable and reliable performance, ensuring long-term stable operation.
Low loss: With low conduction and turn off losses, it helps to improve system efficiency and reduce energy consumption.
High frequency characteristics: With a high switching frequency, suitable for high-frequency applications and improving system response speed.
Simplified driving: By using integrated driving circuits, the design and control of external driving circuits can be simplified, reducing system complexity.
Protection function: equipped with various protection functions such as overcurrent, overheating, overvoltage, etc., to ensure the safe operation of equipment and systems.
2、 Technical parameters
Rated voltage: V DRM=4500V, suitable for high voltage applications.
Rated current: I TGM=4000A, I TSM=32 × 10 ³ A, suitable for high current loads.
Reverse voltage: V RRM=17V, suitable for scenarios that require reverse voltage protection.
Off state current: I DRM is 50mA under the condition of V D=V DRM.

3、 Application field
The ABB 5SHY35L4520 module is suitable for various applications such as high-power power supplies, motor control, and frequency converters. For example, ABB’s ACS series frequency converters for medium voltage transmission and PCS series converters for wind power generation both use IGCT as switching devices. In addition, IGCT devices are widely used in industrial variable frequency speed regulation, wind power grid connection, rail transit and other fields.

4、 Other information
Market situation: ABB 5SHY35L4520 module, as a high-performance power electronic device, has received widespread attention and application in the market. The price may vary due to factors such as purchase quantity, selected specifications, and market activities.
Installation and Maintenance: When installing and maintaining the ABB 5SHY35L4520 module, relevant technical manuals and operating procedures should be followed to ensure the safe and reliable operation of the equipment.
In summary, the ABB 5SHY35L4520 module is a high-performance and powerful high-power IGCT module widely used in various power electronic devices and systems.
