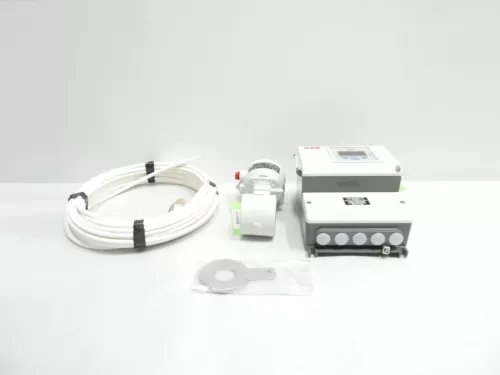

Abb FEM325040E104W1Y1A1A3P1B0Y1 Magnetic Flow Meter

The ABB FEM325040E104W1Y1A1A3P1B0Y1 is a magnetic flow meter/transmitter designed for precise measurement of the flow of liquids within a variety of industrial applications. Here are some key features and details regarding this specific model:

### Key Features:
1. **Magnetic Flow Measurement**: Magnetic flow meters operate on the principle of electromagnetic induction, which allows them to measure conductive fluids without moving parts, minimizing wear and maintenance.

2. **Design and Construction**:
– **Pipe Size**: Suitable for installation in a 1-1/2 inch pipe.
– **Materials**: Typically rugged materials are used to ensure durability and compatibility with various fluids.

3. **Power Supply**: This model operates on 230V AC, making it compatible with standard industrial electrical systems.

4. **Transmitters**: The transmitter converts the flow measurement into a standard signal output (such as 4-20 mA) for easy integration into control systems and monitoring setups.

5. **Output Signals**: Provides reliable output for monitoring flow rates, suitable for integration into SCADA systems or other industrial control systems.

6. **Applications**: Commonly used in water and wastewater treatment, chemical processing, food and beverage, and other applications where accurate flow measurement is critical.

### Advantages:
– **No Moving Parts**: Reduces maintenance needs and the likelihood of wear.
– **Accuracy**: High level of accuracy for flow measurement, even in varying conditions.
– **Versatility**: Can measure a wide range of fluid types, assuming they are conductive.

### Installation and Maintenance:
– **Installation**: Proper installation is essential for accurate measurement. Follow ABB’s installation guidelines, including orientation, grounding, and installation within the pipe system.

– **Calibration**: It may need calibration upon installation and periodically for accuracy, typically following manufacturer guidelines.

– **Maintenance**: Generally low-maintenance due to design but should include regular inspections and checks of electrical connections and signal integrity.

### Documentation:
For detailed specifications, installation manuals, and troubleshooting guidance, it’s advisable to refer directly to ABB’s product documentation or technical support associated with the FEM325040E104W1Y1A1A3P1B0Y1 model.

If you have any specific questions or need further clarification regarding this magnetic flow meter, feel free to ask!
