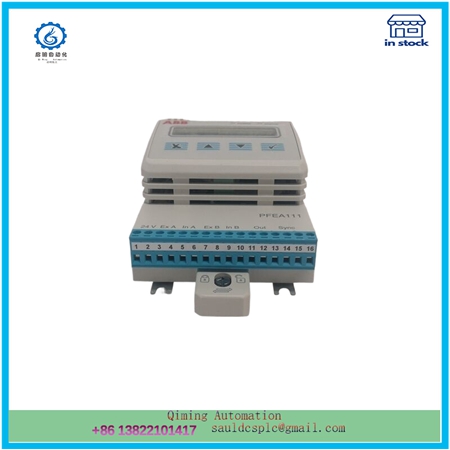

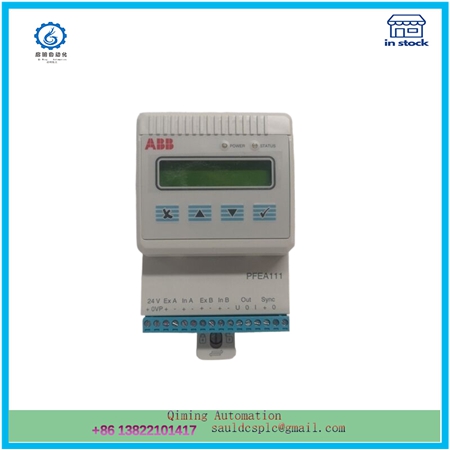

ABB PFEA111-20 3BSE050090R20 tension controller

Description

The ABB PFEA111-20 3BSE050090R20 tension controller is a high-performance tension control device. Here is a detailed description of it:

One, Product Overview
This tension controller is produced by ABB and is mainly used to control the tension of materials during processing to ensure that materials remain at a constant level of tension, thus avoiding issues such as material breakage, wrinkles, slackness, or other quality problems. It is particularly suitable for industries such as roll materials, wire, textiles, plastics, and paper.

II. Main Features
Precise tension control: Employs advanced control algorithms and technologies to precisely measure and regulate material tension, with a control accuracy of ±0.1%, ensuring stable and accurate tension control.
Multiple control modes: Supports manual control, automatic control, and constant tension control, allowing users to select appropriate control modes based on specific process requirements and application scenarios.
Dynamic response and stability: Features excellent dynamic response and stability, enabling quick response to tension changes and maintaining stable tension control, helping to reduce material waste and improve production efficiency.
User interface and programming: Equipped with intuitive user interfaces and programming functions, enabling users to conveniently set parameters, monitor, and debug. Users can adjust tension setpoint values, view current tension values, and monitor operating status through the interface.
Integration and communication: Supports various communication protocols and interfaces, enabling integration and communication with other control systems and devices, achieving remote monitoring, data collection, and automated control, and improving the intelligent level of production processes.
Safety protection and fault diagnosis: Equipped with comprehensive safety protection and fault diagnosis functions, capable of monitoring system operation and abnormal conditions, and promptly issuing alarms or taking emergency measures to protect equipment and personnel safety in case of faults.

III. Technical Parameters
Power supply voltage: 24V DC
Input signal: Analog or pulse signal
Output signal: Analog or relay output
Control accuracy: ±0.1%
Operating temperature: -10℃~+50℃
Dimensions: 144mm x 80mm x 35mm
Weight: 0.5kg
IV. Commissioning Steps
Ensure that the tension controller is installed and wired correctly, then connect the power supply.
Check and determine whether the tension detector signal is normal.
Program the relevant parameters for tension measurement.
Calibrate the zero point and full-scale value of the tension signal, and confirm that the tension display is normal.
Check the system by manually adjusting and running, confirming that the tension display is normal and the actuating mechanism is operating normally.
If the above steps are normal, switch to automatic control mode and adjust the PI parameters

In summary, the ABB PFEA111-20 3BSE050090R20 tension controller is a high-performance tension control device with high precision, multiple control modes, fast dynamic response, easy integration and communication, and complete safety protection and fault diagnosis functions.
