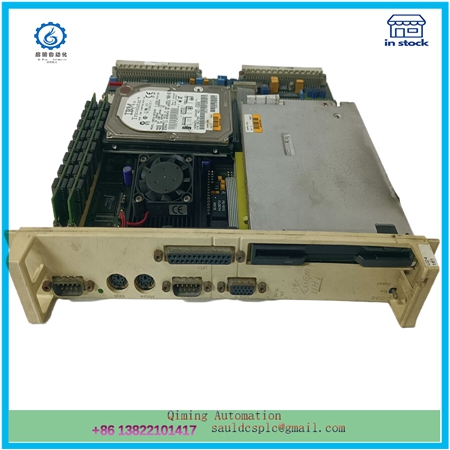

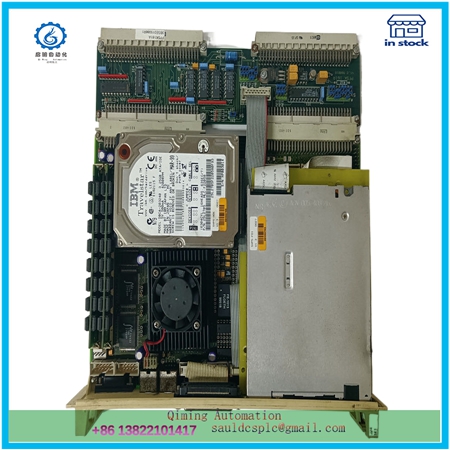

ABB PFSK162 3BSE015088R1 module

Description

The ABB PFSK162 3BSE015088R1 module is a distributed control module or signal conditioning board, mainly used in ABB brand control systems to achieve signal conditioning and control functions. The following is a detailed analysis of the module:

1、 Basic information
Model: PFSK162 3BSE015088R1
Brand: ABB
Usage: Signal regulation and control, widely used in scenarios such as the power industry
Adapted motor power: 88KW (mentioned in some information)
2、 Technical specifications
Processor: May be equipped with a Pentium III processor up to 850 MHz (specific models may vary)
Memory: Up to 512 MB SDRAM using 144 pin SODIMMs, 64 bit AGP SVGA controller with 4 MB SGRAM
Timer: Three programmable 32-bit timers

Storage: 8 to 192 MB bootable flash memory (optional), 128 KB battery supported SRAM
Communication interface: Supports VMEbus P2 connection to hard/floppy drives, onboard fast Ethernet controller interface supports 10BaseT and 100BaseTX, Ethernet interface
Other features: optional watchdog timer with reset software, remote Ethernet boot, VMEbus interrupt processor, interrupter, and system controller, etc
3、 Features and advantages
High precision: Using high-precision electronic components, after precise assembly and debugging, it can achieve precise adjustment and control of input signals.
Usability: Users only need to connect the input signal to the module, and then connect the output signal of the module to the control system, which is very convenient to use.
Multifunctionality: Supports multiple communication protocols and interfaces, making it easy to integrate with different devices and systems.
4、 Application scenarios
This module is mainly used in ABB brand control systems and is suitable for scenarios that require precise signal regulation and control, such as the power industry.
