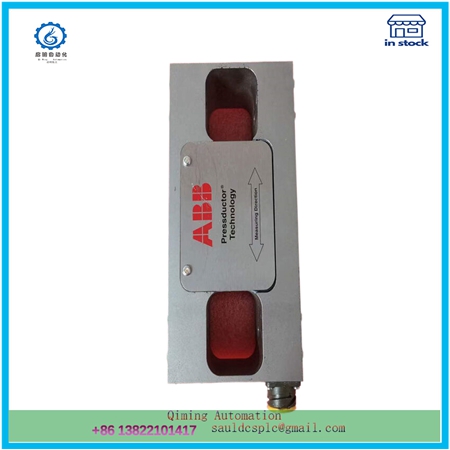

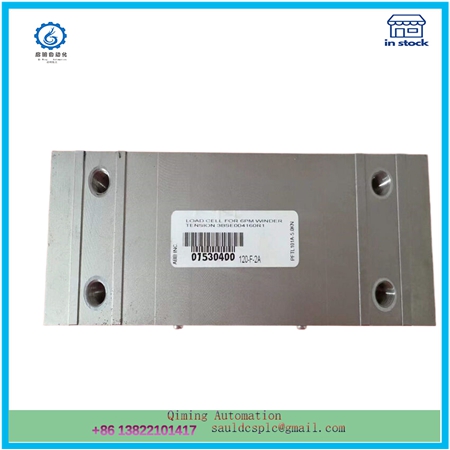

ABB PFTL101A 0.5KN 3BSE004160R1 PILLOWBLOCK TENSIOMETER

Description

ABB PFTL101A 0.5KN 3BSE004160R1 sensor is a piezoelectric tension sensor produced by ABB company. The following is its detailed information, including parameters, functions, application scenarios, and other aspects:

1、 Basic parameters
Brand and model: ABB, PFTL101A-0.5kN, product ID 3BSE004160R1.
Type: Piezomagnetic tension sensor, belonging to the standard type of the horizontal pillow type tension gauge pressure head series.
Design features: Specially designed for metal processing lines, suitable for application scenarios that require a wide tension range and high operating speed. The design of solid stainless steel has high sensitivity, accuracy, and robustness, as well as a high coefficient of elasticity.
2、 Functional characteristics
Working principle: Based on the piezomagnetic effect, when a material is subjected to pressure, its magnetism will change, allowing for the measurement of the force applied to the material.
Measurement range: With a measurement range of 0.5KN, it is suitable for measuring specific tension levels.
Performance: All ABB tension gauges have been calibrated at the time of delivery to ensure accuracy. Although the protection level of the standard PFTL 101A/B may not be as high as the IP 66 of the rolling machine, it can still provide reliable performance.

3、 Application scenarios
Metal processing line: The standard PFTL 101A/B is usually used for conventional metal processing lines, such as annealing, pickling, and galvanizing lines, and the lateral force is very suitable for measuring strip tension.
Paper industry: It is also commonly used for measuring paper tension in equipment such as paper machines, rolling machines, coating machines, and winding machines.
Other industrial fields: may also be widely used in tension measurement and control applications in printing, packaging, textiles, and other fields to monitor and control tension changes in systems.
4、 Other information
Support and Service: ABB has rich professional application knowledge in the field of tension sensors, providing products that are easy to install and operate, as well as good support and after-sales service.
Attention: For environments that require special design for emulsions, it is recommended to use the PFTL 101AE/BE rolling machine, which has a higher protection level and more accurate and reliable measurements.
In summary, ABB PFTL101A 0.5KN 3BSE004160R1 sensor is a reliable and suitable tension measurement sensor for various industrial fields. Its working principle based on the piezomagnetic effect, high sensitivity and accuracy, and wide application scenarios make it an indispensable part of many industrial processes.
