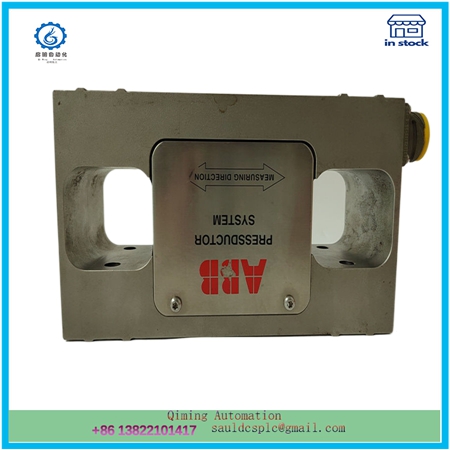

ABB PFTL101A 2.0KN 3BSE004172R1 pressure guided weighing sensor

Description

ABB’s PFTL101A 2.0KN 3BSE004172R1 is a pressure guided weighing sensor. The following is a detailed overview of its related information:

Model and brand:
Model: PFTL101A 2.0KN 3BSE004172R1
Brand: ABB
Main features:
As a pressure guided weighing sensor, it can accurately measure and reflect pressure changes.
Usually used in industrial applications that require precise measurement and control of weight, such as automation control systems, tension control systems, etc.
Technical parameters:
Range: 2.0KN (i.e. 2000 Newton)

Accuracy: The specific accuracy is not given, but ABB sensors typically have high accuracy.
Specification and size: PFTL101A 2.0KN 3BSE004172R1mm (note that there may be a typo here, as the unit of mm is usually used to describe length, not model)
Control principle: Other (specific principle not clearly provided)
usage method:
It is necessary to connect the working circuit according to the electrical schematic and ensure good grounding of the transformer casing, operating platform, etc.
After connecting the power, the green indicator light on the control panel will light up. After pressing the start button, the red indicator light will light up. At this time, the current regulator is waiting for the current to rise.
Rotate the voltage regulator clockwise evenly and pay attention to the output current indication on the operating table until the desired high current is reached.
If any abnormal phenomena are found during the test, the power should be immediately cut off, and the cause should be identified before conducting the test.
After the test is completed, the voltage regulator must be reset to zero, the power supply must be cut off by pressing the stop button, and the working power supply must be cut off before the test wiring can be removed.
