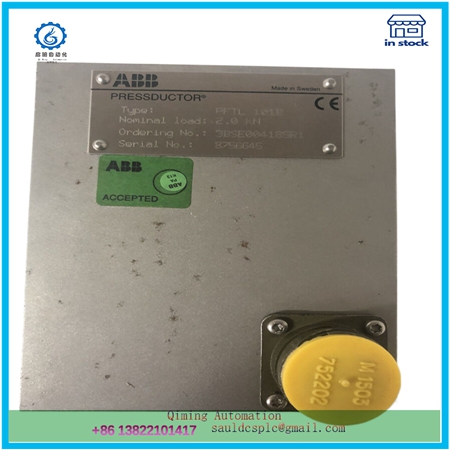

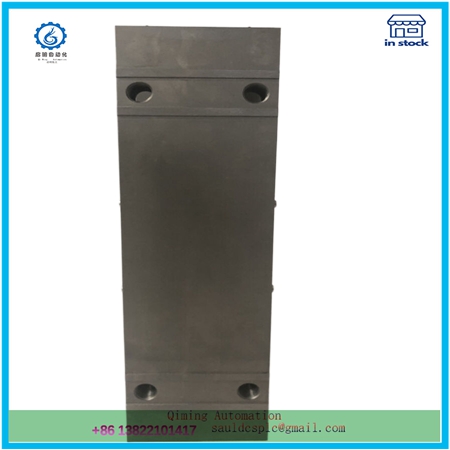

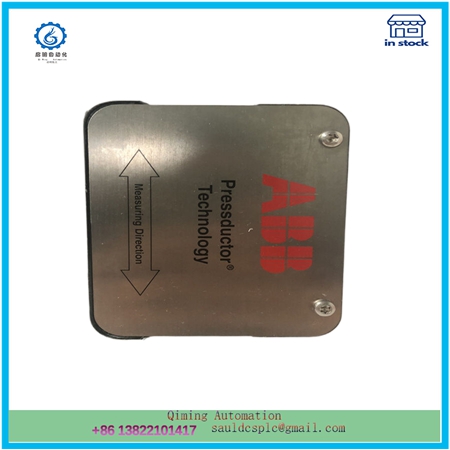

ABB PFTL101B 2.0KN Piezomagnetic pressure head

Description

ABB PFTL101B 2.0KN sensor is a high-performance tension sensor widely used in various industrial environments, especially in steel mills and other situations that require precise tension control. The following is a detailed introduction to the sensor:

1、 Function and Features

High precision measurement: The ABB PFTL101B 2.0KN sensor adopts a high-speed 16 bit A/D converter to ensure the stability and repeatability of measurement data, thereby providing high-precision tension measurement. Its measurement accuracy can reach ± 0.5% (battery powered) or ± 0.25% (AC220V powered), and this high-precision control capability is crucial for ensuring precise control of material tension in the production process.

Wide measurement range: This sensor features automatic programmable current source technology, with a total of 1000 current levels set for the current source. It is automatically controlled by an internal microcontroller based on the measured resistance, achieving a relatively wide measurement range.
Intelligent design: Sensors have a highly intelligent design with clever and advanced functional settings. It can automatically detect faults such as virtual connections and broken wires in the test line, and has a protection function, which can reliably protect the impact of back electromotive force on the instrument. At the same time, it can also display the measured current and measurement time, providing intelligent power management technology to reduce internal heating of the instrument.
Data storage and ease of operation: The sensor can store 120 measurement data, and the data will not be lost after power failure. In addition, all Chinese menus and operation prompts are used, making the operation more intuitive and convenient.
2、 Application scenarios and advantages

The ABB PFTL101B 2.0KN sensor is mainly used in industrial environments such as steel mills for precise control of material tension. Its advantages lie in:

Excellent performance: The high-precision measurement and wide measurement range of the sensor enable it to adapt to various complex industrial environments, ensuring the stability of the production process and product quality.
High reliability: The sensor has a good protection level of IP68, which means it can operate stably in harsh industrial environments and has good protection against the invasion of dust and water. This excellent level of protection enables the sensor to maintain good performance even in humid and dusty environments.
3、 Technical parameters and specifications

Measurement range: 2.0KN
Measurement accuracy: ± 0.5% (battery powered) or ± 0.25% (AC220V powered)
Protection level: IP68
Input voltage: -0.6 V DC
Operating temperature range: -20 ° C to+50 ° C
Storage temperature range: -40 ° C to+70 ° C
Product dimensions: 170mm x 105mm x 32mm
Product weight: approximately 120g
4、 Usage

The usage method of ABB PFTL101B 2.0KN sensor is relatively simple and intuitive. Users can easily set and operate through Chinese character menus and operation prompts. The specific steps include connecting sensors, setting measurement parameters, starting measurement, and reading and recording data. During use, users should ensure that the sensor is in a suitable working environment and follow relevant safety operating procedures.

Overall, ABB PFTL101B 2.0KN sensor has become an indispensable high-performance tension measurement tool in industrial environments such as steel mills due to its advantages of high precision measurement, wide measurement range, intelligent design, excellent reliability and protection level.
