ABB PM864AK01 3BSE018161R1 Processor Unit

Description

ABB PM864AK01 3BSE018161R1 is a powerful programmable logic controller (PLC) belonging to ABB’s AC 800M series. This controller is designed for demanding industrial applications with high reliability and flexibility. The following is a detailed introduction to the ABB PM864AK01 3BSE018161R1 processor:

1、 Basic Overview
Model and number: ABB PM864AK01, number 3BSE018161R1.
Series ownership: This processor belongs to ABB’s AC 800M series and is an important product in this series.
2、 Core performance
Processing ability:
High performance processor: PM864AK01 3BSE018161R1 adopts a high-speed microprocessor and algorithm, which can achieve efficient data processing and control functions. It can handle complex control logic and tasks, ensuring fast response and stability of the system.
Performance parameters: The clock frequency of this processor is 96MHz, and it only takes 0.15 milliseconds to process 1000 Boolean operations, demonstrating its powerful computing power.

Storage capacity:
Large capacity storage: Although the information mentioned in the reference information that PM864AK01 has a hard drive of up to 4250GB may not be accurate (as such a large hard drive capacity is not common for PLCs), we can confirm that the processor has a large storage capacity. In fact, it is usually equipped with 32MB of memory, of which 23.522MB is available for application use and supports flash storage.
Communication interface:
Multiple communication protocols: PM864AK01 3BSE018161R1 supports multiple communication protocols such as Modbus, Profibus, Ethernet, etc., facilitating data exchange and communication with other devices and sensors. This helps to achieve interconnectivity of devices, improve the integration and intelligence level of the entire control system.

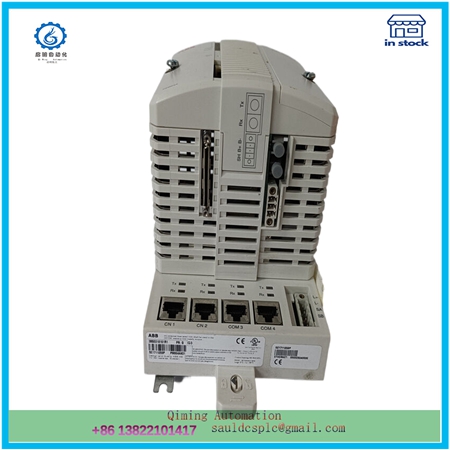

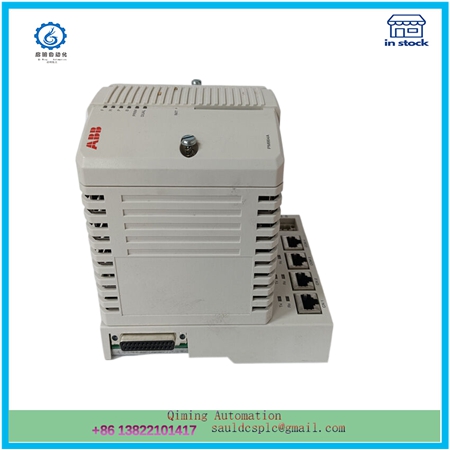

Hardware interface: includes two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4), where COM3 is an RS232C port with a modem control signal, and COM4 is isolated for connecting configuration tools.
3、 Function and Features
Real time control capability: This processor can provide real-time control functions to ensure fast response to the system. It can make control decisions based on real-time data and feedback, improving control accuracy and stability.
Flexibility and scalability:
Modular design: PM864AK01 3BSE018161R1 adopts a modular design that allows for gradual expansion to meet application requirements of different scales and complexities.
Programming options: Supports multiple programming languages, including ladder diagram (LD), functional block diagram (FBD), and structured text (ST), etc. Users can choose the appropriate programming language for programming and debugging according to their actual needs.
Security and reliability:
Built in redundancy function: Designed to be highly reliable and includes built-in redundancy function. In the event of a malfunction, the system can seamlessly switch to a backup module to ensure uninterrupted operation.

Security features: Equipped with comprehensive security features such as access control, encrypted communication, etc., to ensure the security and stability of the system. It can prevent unauthorized access and data leakage, and protect the security of devices and systems.
Other advantages:
IP20 level protection without shell requirements: Provides good environmental adaptability.
Complete EMC certification: Ensure stable operation of equipment in electromagnetic environments.
Easy to configure: You can use 800xA Control Builder for configuration, simplifying the configuration process.
4、 Application field
Due to its powerful processing power and flexible programming options, the ABB PM864AK01 3BSE018161R1 processor can be widely used in process control, motion control, and safety systems, especially in industrial environments that require high reliability and real-time performance.

In summary, ABB PM864AK01 3BSE018161R1 is a powerful and high-performance programmable logic controller suitable for various complex industrial application scenarios.
