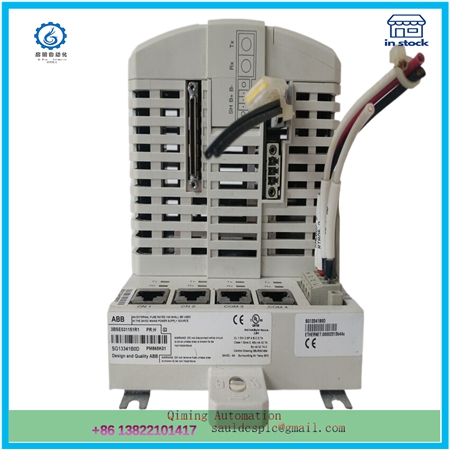

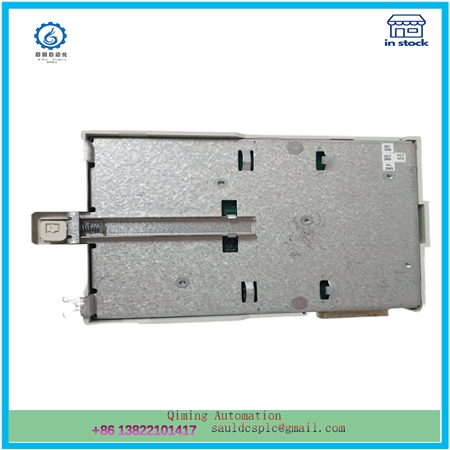

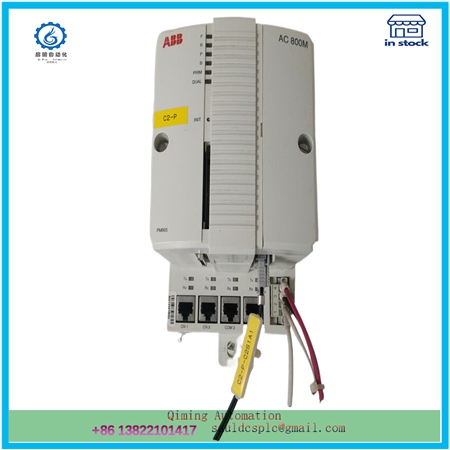

ABB PM865K01 3BSE031151R1 Processor Unit

Description

The ABB PM865K01 3BSE031151R1 module is a high-performance industrial automation controller commonly used to perform various control and monitoring tasks. The following is a detailed introduction to this module:

1、 Product Overview
Product Name and Number: ABB PM865K01 3BSE031151R1
Application field: Widely used in industrial automation, robot control and other fields, to meet various complex automation control needs.
2、 Core features
Programmability:
Supports multiple programming languages, such as those defined in the IEC 61131-3 standard, allowing users to customize control logic to adapt to various complex industrial environments and automation requirements.
Communication interface:

Having multiple communication interfaces, such as Ethernet, serial communication, etc., for data exchange with other devices and systems.
Specifically, the module has two Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4), with one port (COM3) being an RS-232C port with a modem control signal and the other port (COM4) being isolated and primarily used to connect configuration tools.
Supports communication protocols such as Ethernet/IP and Modbus TCP, facilitating remote control and high-speed data transmission.
Redundancy:
Support CPU redundancy configuration to improve system reliability and fault tolerance. In some cases, if the main CPU fails, the backup CPU can take over immediately to ensure the continuity and stability of industrial automation processes.
Security:
Equipped with safety functions, it can be used for safety critical applications such as emergency shutdown and fault detection, reducing the risk of accidents and malfunctions.
3、 Hardware specifications
Processor: Adopting ARM Cortex-A9 processor, it has powerful processing power and fast data processing capability.
Memory capacity: 1GB RAM, 4GB Flash, ensuring high performance and fast data processing.
Appearance dimensions and weight: 110mm x 80mm x 35mm, weight is 200g.

Power requirements: The input voltage is 24V DC, the input current is 1A, and the maximum power is 20W.
4、 Work environment
Working temperature: -25 ℃~+70 ℃
Storage temperature: -40 ℃~+85 ℃
Working humidity: 5%~95% RH
5、 Precautions
Please ensure that the input voltage is 24V DC and connected to the correct polarity.
Do not use this product in harsh environments such as high temperature, humidity, and dust.
Please do not disassemble this product without authorization to avoid damaging the equipment.
Please correctly wire according to the product manual and connect the corresponding equipment.
6、 Price information
The price may vary due to factors such as merchants and promotional activities. According to information from a certain supplier website (China Supplier Network), the price of ABB PM865K01/3BSE031151R1 modules varies under different order quantities. For example, the price of 3-4 pieces is ¥ 8900.00, and the price of 5-9 pieces is ¥ 8800.00. The price may be lower when purchasing in large quantities.

In summary, the ABB PM865K01 3BSE031151R1 module is a powerful, flexible, and high-performance industrial automation controller suitable for various industrial automation and control applications.
