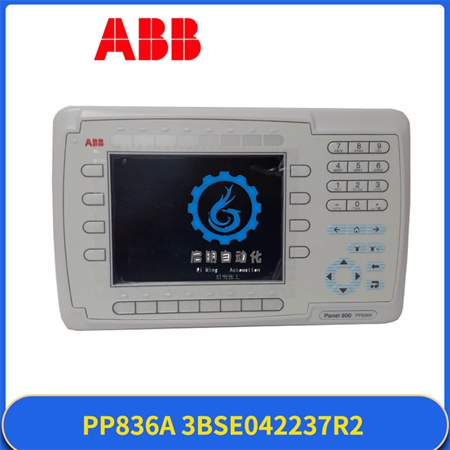

ABB PP836A 3BSE042237R2 touch screen operator panel

Description

PP836A 3BSE042237R2 is a touch screen operator panel module produced by ABB. The following is detailed information about this product:

Product Overview:
PP836A 3BSE042237R2 is a touch screen operator panel launched by ABB, designed specifically for the AC 800F Freelance control system.
Main features:
Intuitive user interface: Adopting the Windows CE operating system, providing users with familiar operating methods.
High resolution display screen: equipped with a 10.1-inch color touch screen with a resolution of 800×600, the display is clear and delicate.
Powerful: Supports various functions such as trend curves, alarm management, parameter settings, etc., to meet the needs of industrial automation applications.
High reliability: Select high-quality components and advanced design technology to ensure stable operation.
Good compatibility: Highly compatible with the AC 800F Freelance control system.
Technical parameters:
Display screen size: 10.1-inch color touch screen.
Resolution: 800×600 pixels (some sources mention a resolution of 1600×1200 pixels, which may vary due to product updates or different models. It is recommended to verify the latest official information).
Interface: Supports communication interfaces such as Ethernet, RS-232, RS-485, etc.
Working temperature range: It can operate normally in an environment from -20 ℃ to+60 ℃ (or -40 ℃ to 85 ℃, depending on the product model and configuration).
External dimensions: approximately 239mm x 202mm x 164mm.
Weight: Approximately 2.2kg.
Application field:
This operator panel is widely used in the field of industrial automation and is an important component for achieving human-computer interaction, facilitating user operation and monitoring system operation.
