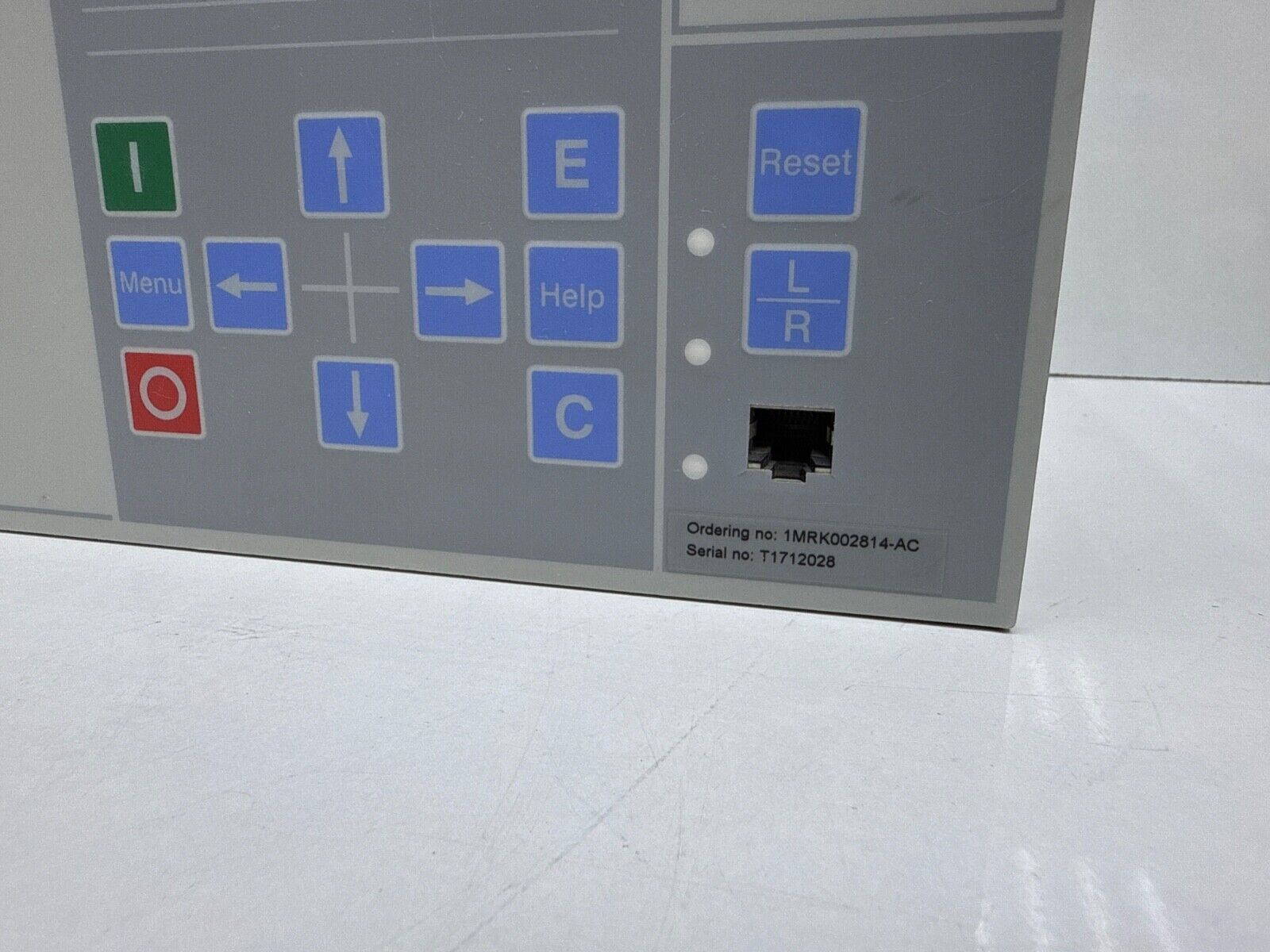

ABB REC670 1MRK002814-AC protiction relay

Description

The **ABB REC670 1MRK002814-AC** protection relay is part of ABB’s Relion® family of protection and control devices, designed for various applications in the electrical power industry. The REC670 relay is specifically intended for the protection of electrical equipment such as motors, transformers, and generators, offering a range of features suited for medium- to high-voltage systems.

### Overview

1. **Purpose:**
– The REC670 relay is designed for the protection, control, and monitoring of electrical power systems, ensuring reliable operation and protecting against faults or abnormal conditions.

2. **Applications:**
– Commonly used in substations, generation facilities, and industrial applications where electrical equipment requires advanced protection strategies.

Key Features

1. **Multifunction Protection:**
– The REC670 relay provides a comprehensive set of protection functions, including overcurrent, earth fault, voltage protection, and more, allowing it to interface with a variety of system components.

2. **Communication Capabilities:**
– Equipped with communication protocols (e.g., IEC 61850, DNP3) for seamless integration into modern digital substations, supporting remote monitoring and control.

3. **User-Friendly Interface:**
– Features an intuitive graphical LCD display and user-friendly operating interface for easy configuration, monitoring, and diagnostics.

4. **Modular Design:**
– The relay is packaged in a modular design, allowing users to select and configure only the necessary functions for their specific application, optimizing performance and cost.

5. **Event Recording and Analysis:**
– Provides extensive event logging and fault analysis capabilities, allowing operators to investigate incidents and improve system reliability.

6. **Self-Diagnostics:**
– Includes self-monitoring and diagnostic features to identify potential issues proactively, ensuring the relay’s reliable operation.

7. **Flexibility and Scalability:**
– The flexible architecture allows for the addition of extra functionalities, making it adaptable to changing system demands.

### Specifications

While specifications can vary based on the specific configuration of the model, some common attributes of the REC670 relay might include:

– **Power Supply:**
– A typical power supply range might be 48-250 V DC or AC, depending on the application requirements.

– **Inputs/Outputs:**
– Configurable input and output contacts to interface with various devices in the system.

– **Size:**
– Compact design suitable for installation in control panels or substation environments.

– **Environmental Ratings:**
– Designed to operate within specified temperature ranges and environmental conditions suitable for substation applications.

### Installation and Maintenance

1. **Installation:**
– Installation should be performed by qualified personnel following ABB’s guidelines and standards for setup and configuration, including wiring and mounting procedures.

2. **Configuration:**
– The relay’s configuration can be done via the front panel or dedicated software tools provided by ABB, such as the Relay Setting Tool (RST).

3. **Regular Testing:**
– Periodic tests and maintenance checks should be conducted to validate the relay’s functionality, including testing protection settings through secondary injection.

4. **Documentation:**
– ABB provides comprehensive technical documentation and operation manuals that should be consulted for detailed instructions on installation, configuration, and troubleshooting.

### Conclusion

The **ABB REC670 1MRK002814-AC protection relay** is a vital component for enhancing the reliability and safety of electrical power systems. Its multifunction capabilities, communication features, and user-friendly design make it suitable for various applications in the power industry.

If you have more specific questions about the REC670 relay, such as its technical specifications, applications, or setup procedures, please let me know!
