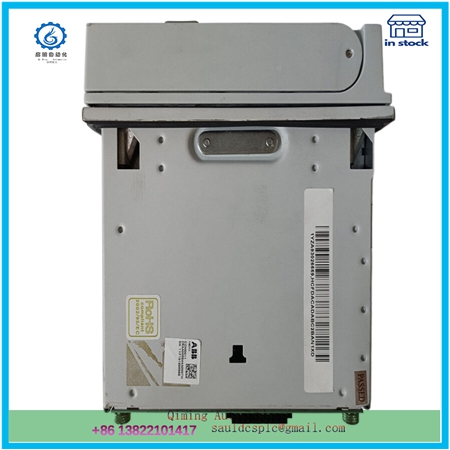

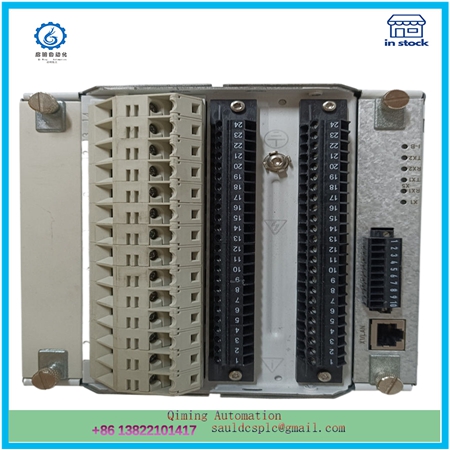

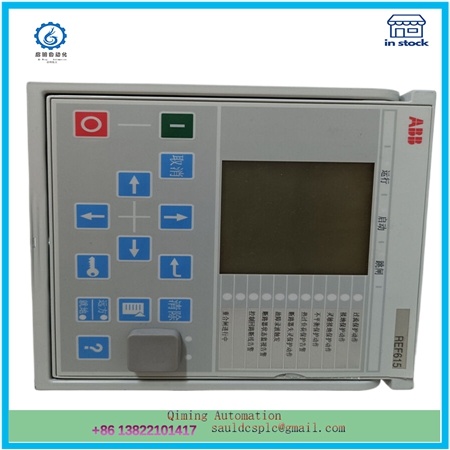

ABB REF615C-D HCFFAEAGABC2BAA1XD Feedback Device

Description

ABB REF615C-D HCFFAEAGABC2BAA1XD Feedback Device Detailed Report
1、 Product Overview
ABB REF615C-D HCFFAEAGABC2BA1XD is a control relay commonly used in industrial automation control systems and power systems to achieve equipment protection, control, measurement, and monitoring functions. This product is produced by ABB Group, a leading global power and automation technology company known for its high quality and reliability.

2、 Technical specifications
1. Input output interface
Multiple input and output interfaces: including digital input, analog input, digital output, analog output, etc., to meet different control needs.
Communication protocol support: Supports various communication protocols such as IEC 61850 and Modbus, making it easy to communicate with other devices and monitoring systems.
2. Working conditions
Input voltage: 100-240V AC
Frequency: 50/60Hz
Working temperature: -20 ° C to+60 ° C
Working environment: Normal temperature and pressure, suitable for industrial environments, with anti vibration, anti pollution, and dust-proof functions.
3. Other specifications
Structural form: modular
Color: Silver
Installation method: on-site installation
3、 Functional characteristics

1. Multi functional protection
Overcurrent protection: Monitor current and prevent overload.
Short circuit protection: Quickly respond to short circuit situations.
Ground fault protection: monitoring ground faults.
Under frequency/over frequency protection: Monitor frequency changes to ensure stable equipment operation.
Undervoltage/overvoltage protection: Monitor voltage changes to prevent equipment damage.
2. Automation functions
Automatic reclosing: Automatically attempts to reconnect after detecting a fault.
Current differential protection: accurately distinguish internal and external faults.
Simultaneous operation: Ensure phase synchronization during grid connection or disconnection operations.
3. Communication and monitoring
Remote monitoring and control: Implement remote access and control through supported communication protocols.
Event recording: Record and store event and fault data in the power system for subsequent analysis and troubleshooting.
4. Flexibility and programmability
Programmable logic: Users can program according to specific needs to achieve flexible control.
Human machine interface: equipped with an easy-to-use human-machine interface, making it convenient for operators to monitor and configure working parameters.
5. High reliability and stability
High quality design: Adopting high-quality circuit design and manufacturing technology, it has undergone strict quality control and testing.
Industrial grade design: designed for industrial environments, with a long service life and high stability.

4、 Application scenarios
ABB REF615C-D HCFFAEAGABC2BAA1XD control relays are widely used in the following fields:

Power system: used in fields such as power substations, power distribution, power quality monitoring, motor protection, and equipment protection.
Industrial automation: Control equipment such as motors, pumps, valves, etc. to achieve automated control processes.
Public and industrial distribution systems: protect, control, measure, and monitor public and industrial distribution networks, including radial, circular, and grid distribution networks.
5、 Summary
ABB REF615C-D HCFFAEAGABC2BA1XD is a powerful and highly reliable control relay with multiple protection and automation functions, supporting multiple communication protocols, suitable for various power systems and industrial automation control scenarios. Its programmability, intuitive human-machine interface, and high reliability make it an indispensable and important device in industrial applications.
