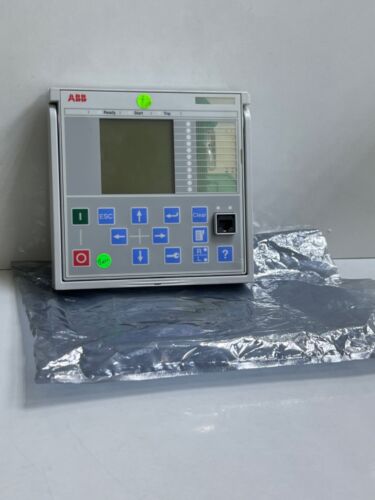

ABB REF615E-D protection & control relay 2rca025340a0001b

The ABB REF615E-D is a protection and control relay designed for the protection of medium-voltage transformers and feeders. This device is part of ABB’s RELION® protection and control family, which provides advanced protection, automation, and monitoring capabilities for electrical systems.

### Key Features of the REF615E-D:
1. **Protection Functions**: The relay includes multiple protection functions such as overcurrent, earth fault, distance protection, and differential protection, making it suitable for various applications in the power distribution network.

2. **Control and Monitoring**: The REF615E-D allows for control of the connected equipment and offers monitoring capabilities that help in assessing the operational status of electrical networks.

3. **Communication**: It supports various communication protocols (like IEC 61850) for integrating into modern communication infrastructures, allowing for remote monitoring and control.

4. **Flexible Configuration**: The relay offers flexibility in configuration, which can be customized to fit specific protection schemes or needs of a particular installation.

5. **User Interface**: The device typically features a user-friendly display and keypad for easy access to settings, monitoring parameters, and event logs.

### Display Panel 2RCA025340A0001B:
In your inquiry, “2RCA025340A0001B” refers to a specific component number related to the display panel or interface of the REF615E-D relay. This could be crucial for applications requiring an HMI (Human-Machine Interface) for user interaction.

### Additional Information:
For detailed specifications, installation guidelines, and troubleshooting related to both the REF615E-D and the display panel 2RCA025340A0001B, consider the following resources:

1. **User Manuals**: Obtain the official user manual for the REF615 relay and the display panel. This documentation provides comprehensive details on installation, setting configurations, and operational procedures.

2. **ABB Customer Support**: Reaching out to ABB customer support can provide assistance for specific issues or queries regarding the relay and its components.

3. **Technical Documentation**: Technical white papers or application notes from ABB may be available, offering insights into the best practices for using these relays in electrical protection schemes.

4. **Community Forums**: Platforms dedicated to electrical engineering and automation may have discussions or insights from professionals who have experience with ABB equipment.

If you need further assistance or have specific queries about the REF615E-D relay or its display panel, please feel free to ask!
