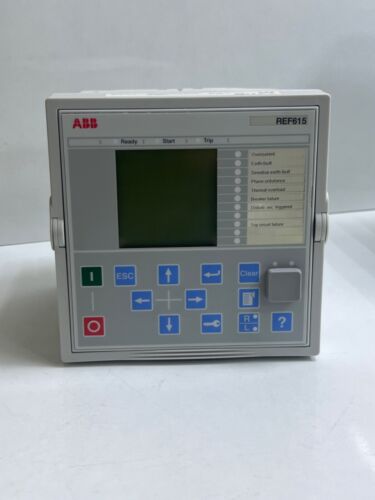

ABB REF615E_C HBFCADABNBBA1BNN1XC PROTECTION CONTROL RELAY

Description

The **ABB REF615E_C HBFCADABNBBA1BNN1XC** is part of ABB’s REF615 series of protection and control relays. This series is designed for use in electrical distribution networks, specifically for protecting and controlling medium-voltage motors and feeders. The REF615 offers high flexibility, reliability, and functionality for protection applications.

### Overview

1. **Purpose:**
– The REF615E relay is mainly used for protecting electrical equipment, such as transformers, motors, and overhead lines, from faults such as overloads, short circuits, and earth faults. It also provides control functionalities to improve operational efficiency.

2. **Applications:**
– This relay is suitable for various applications in electrical substations, industrial processes, and utilities, where reliable protection and control of electrical systems is essential.

### Key Features

1. **Protection Functions:**
– The REF615E relay includes a range of protection functions such as:
– Overcurrent protection
– Earth fault protection
– Directional overcurrent and earth fault protection
– Thermal overload protection
– Short-circuit detection

2. **Control Functions:**
– In addition to protection, it provides functionalities such as circuit breaker control, motor control, and automation functions, enhancing operational efficiencies.

3. **Communication Capabilities:**
– Equipped with various communication protocols such as IEC 61850, DNP3, and Modbus, allowing seamless integration into modern networked control systems.

4. **User-Friendly Interface:**
– The REF615E typically has a user-friendly graphical interface for easy configuration and monitoring through HMI (Human-Machine Interface) displays.

5. **Adaptive Protection:**
– The relay can adapt to transient conditions in the network, helping to ensure stability and reliability in the power system.

6. **Event Recording and Fault Analysis:**
– It features comprehensive event recording, allowing operators to visualize fault events, analyze causes, and take corrective actions.

7. **Flexible Settings:**
– Users can customize settings for different protection functions to cater to specific system requirements.

### Specifications

While exact specifications may vary based on the configuration, here are some common aspects to consider:

– **Operating Voltage:**
– Designed for application in medium-voltage systems (typically ranges from 1 kV to 36 kV depending on equipment).

– **Current Inputs:**
– Can accommodate multiple CT (Current Transformer) inputs, support for different rating settings.

– **Protection Settings:**
– Multiple settings for different operational conditions, including time delays, pick-up values, and characteristic settings.

– **Dimensions and Mounting:**
– Compact design suitable for mounting in control cabinets or switchboard panels.

### Installation and Maintenance

1. **Installation:**
– Should be installed following detailed manufacturer instructions, ensuring proper wiring and grounding.

2. **Configuration:**
– Configuration is typically done via software tools or an HMI, and it may encompass setting the various protection parameters to meet system demands.

3. **Regular Testing:**
– Routine testing and troubleshooting should be performed to ensure the integrity of the protection system.

4. **Firmware Updates and Documentation:**
– It’s advisable to keep the relay firmware updated and consult ABB documentation for detailed operation guides and troubleshooting procedures.

### Conclusion

The **ABB REF615E_C HBFCADABNBBA1BNN1XC** is a versatile protection and control relay that offers robust functionalities for electrical system protection. Its adaptability, combined with advanced communication capabilities, makes it an efficient solution for protecting medium-voltage applications in various industries.

If you have any more detailed questions about this relay or need information on related ABB products, feel free to ask!
