ABB REG216 rack PDF

Description

The relevant information of ABB REG216 rack can be summarized as follows:

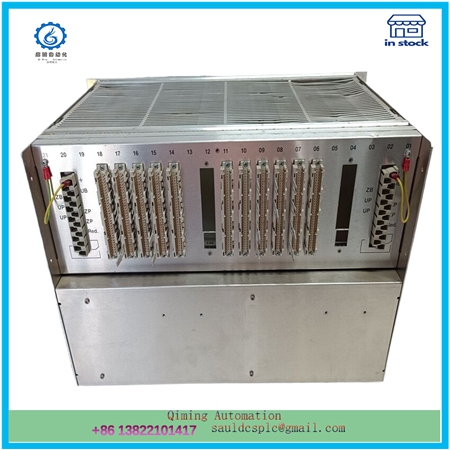

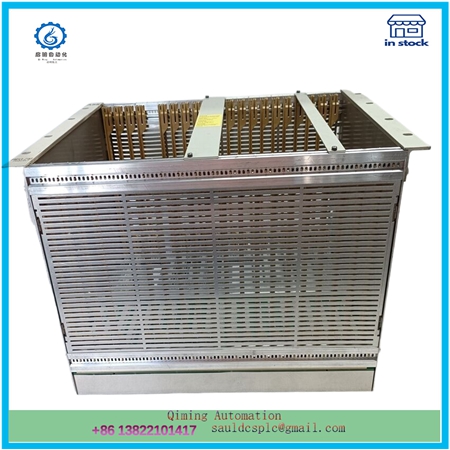

1、 Rack size and structure
Standard size: The electronic unit of REG216 adopts a plug-in design and is installed in a device rack with a standard size of 19 inches 6U (1U=44.45mm). This rack design facilitates the installation and maintenance of equipment.
Partition situation: The equipment rack can be divided into 21 standard partitions to meet the installation requirements of different functional modules.
2、 Functional Features
Modular design: The REG216 rack adopts a modular design, which enables both hardware and software to have high flexibility and scalability. Users can easily add or remove functional modules according to their actual needs to meet the needs of different scales and application scenarios.
High performance processing: REG216 devices are typically equipped with high-performance processors to support complex control algorithms and real-time data processing.
Multi channel input/output: supports multiple input and output channels, used to connect sensors, actuators, and other devices to monitor and control multiple parameters in industrial processes.

3、 Application and Communication
Application scenario: REG216 devices are commonly used in distributed control systems (DCS), allowing remote monitoring and control of multiple devices and processes. This distributed architecture helps improve production efficiency and reliability.
Communication Interface: Equipped with a communication interface, it can exchange and communicate data with other automation equipment, PLC, SCADA systems, etc. to coordinate the operation of the entire system.
4、 Other characteristics
Real time data collection: capable of collecting data from various sensors in real-time, including parameters such as temperature, pressure, flow rate, and current.
Control function: It has control function and can perform automated control operations, such as adjusting valves, switching actuators, adjusting motor speed, etc.
Security and stability: Equipped with security features such as fault detection, backup control, and security locking to ensure the safe operation of the system. At the same time, REG216 adopts advanced digital technology to accurately process and analyze signals, ensuring the accuracy and reliability of protection.
In summary, the ABB REG216 rack plays an important role in the field of industrial control due to its standard size, modular design, high-performance processing, multi-channel input and output, and wide range of applications and communication interfaces. These features enable the REG216 rack to adapt to complex and ever-changing industrial environments, meeting the diverse needs of users.
