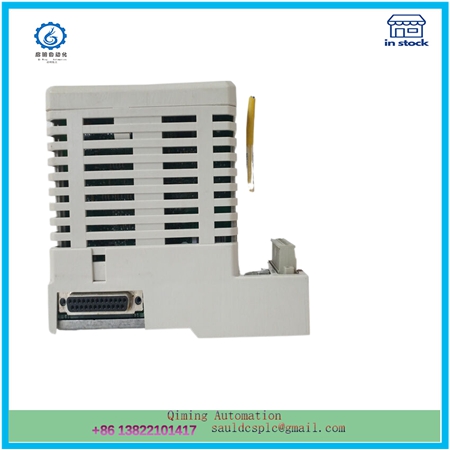

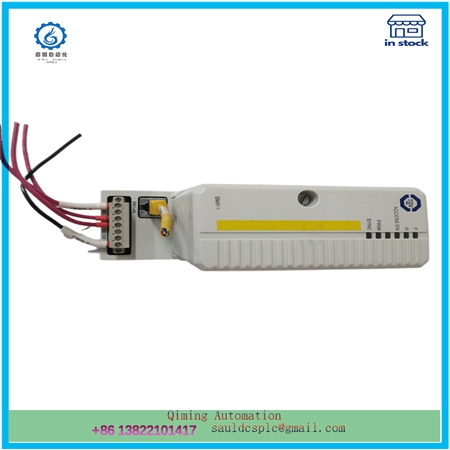

ABB SM811K01 3BSE018173R1 Safety CPU module

Description

The ABB SM811K01 3BSE018173R1 module is a high-performance and highly secure industrial control component designed to meet the stringent requirements of the industrial automation field. The following is a detailed introduction to this module:

1、 Basic Overview
Product model: ABB SM811K01 3BSE018173R1
Type: Secure CPU Module
Manufacturer: ABB (a leading global power and automation technology group)
2、 Main functions and characteristics
High security:
Through SIL3 certification, ensure its high level of security integrity. This means that the module can maintain its functionality and data integrity in the face of various potential threats and attacks, preventing unauthorized access and tampering.
Highly reliable and stable, able to meet strict safety requirements in industrial environments.
Powerful computing power:
Equipped with high-performance CPUs (such as the MPC862P microprocessor, running at 96 MHz), it can quickly process large amounts of data and complex algorithms, ensuring the real-time and accuracy of industrial automation systems.

Equipped with 32 megabytes of memory for storing and processing data.
Easy to configure and manage:
Users can flexibly configure the SM811K01 module according to the configuration security manual to meet the needs of different application scenarios.
Provide rich diagnostic and maintenance functions to facilitate user monitoring and maintenance of the system.
Good compatibility:
It can collaborate with other components such as ABB’s PM865 to achieve seamless integration.
Supports multiple communication protocols and interfaces (such as Ethernet interface, serial interface, etc.), facilitating data exchange with other devices and systems.
Redundancy and synchronization functions:
For high availability applications, SM811K01 can work in conjunction with either of the two redundant CPUs.
Equipped with dedicated synchronization links (such as TK852V01 synchronization link cable) for synchronizing active and redundant SMs, supporting hot swapping and online upgrades.
3、 Application field
The ABB SM811K01 3BSE018173R1 module is widely used in various industrial automation scenarios, such as power, chemical, pharmaceutical, food and other industries. In these fields, this module provides stable and reliable operational support for industrial automation systems.

4、 Other information
Physical dimensions and weight:
Dimensions (including base): width 59 millimeters (2.9 inches), height 186 millimeters (7.3 inches), depth (not specified, but can be estimated based on other information).
Weight (including base): Approximately 0.7 kilograms (1.5 pounds).
Power requirements: 24V DC (19.2-30V DC), with a typical power consumption of 3.8 watts.
In summary, ABB SM811K01 3BSE018173R1 module is an industrial control component that integrates high security, powerful computing power, easy configuration and management, good compatibility, redundancy and synchronization functions, providing strong support and guarantee for industrial automation systems.
