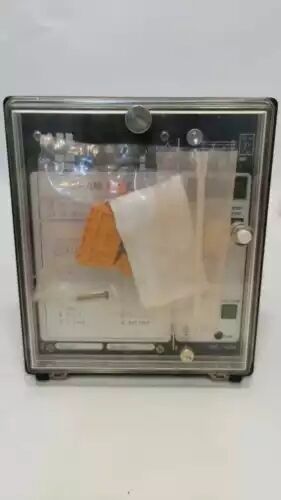

ABB SPCJ 4D34 Over Current and Earth-Fault Relay SPAM 150 C

The **ABB SPCJ 4D34** is an overcurrent and earth-fault relay that is typically used for protecting electrical systems from faults that can lead to damage or unsafe operating conditions. This relay is part of ABB’s broader range of protective relays designed for monitoring electrical systems, preventing equipment failure, and enhancing operational safety.

### Key Features

1. **Overcurrent Protection**:
– The SPCJ 4D34 provides reliable overcurrent protection, allowing users to set specific thresholds for current levels. If the current exceeds these levels, the relay will trigger an alarm or trip the associated circuit to prevent damage.

2. **Earth-Fault Protection**:
– It offers earth-fault detection capabilities, monitoring the flow of current and detecting any imbalances that indicate an earth fault condition. This is crucial for the protection of both personnel and equipment.

3. **Adjustable Settings**:
– Users can adjust parameters such as time delays and current thresholds according to the specific requirements of their electrical systems, allowing for customized protection schemes.

4. **Trip and Alarm Indication**:
– The relay is equipped with indicators for trip and alarm conditions, providing visual feedback about the operational status and any detected faults.

5. **Wide Application Range**:
– The SPCJ 4D34 is suitable for use in various applications, including power distribution systems, industrial installations, and generator protection.

6. **Compact Design**:
– Its compact design facilitates easy integration into existing panels or switchgear, saving space and simplifying installation.

### Applications

The **SPCJ 4D34** relay can be employed in various contexts, including:

1. **Industrial Facilities**:
– Providing protection for motors, transformers, and other critical equipment within manufacturing plants.

2. **Power Generation**:
– Used for protecting generators from overload and earth fault conditions, ensuring consistent and reliable power output.

3. **Commercial Buildings**:
– Enhancing electrical safety in commercial infrastructures by protecting equipment and ensuring compliance with safety standards.

4. **Utility Applications**:
– Commonly employed in electrical distribution networks for protecting feeders and substations.

### Operational Principles

– **Monitoring**: The relay continuously monitors the current flowing through the circuit. When it detects current levels above the programmed threshold, it activates a protective response, which may include tripping the circuit breaker.

– **Detection of Faults**: The device employs operational algorithms to distinguish between normal operational variances and genuine fault conditions, helping to reduce nuisance tripping.

– **Relay Reset**: After a fault trip, the relay may have a manual or automatic reset feature to restore the system to operational status after the issue has been rectified.

### Conclusion

The **ABB SPCJ 4D34 Over Current and Earth-Fault Relay** is a crucial component for ensuring the safety and reliability of electrical systems. By providing robust protection against overcurrent and earth-fault conditions, the relay helps minimize the risk of equipment damage and enhances overall operational safety. If you need further details, such as specifications, installation instructions, or application scenarios, please feel free to ask!
