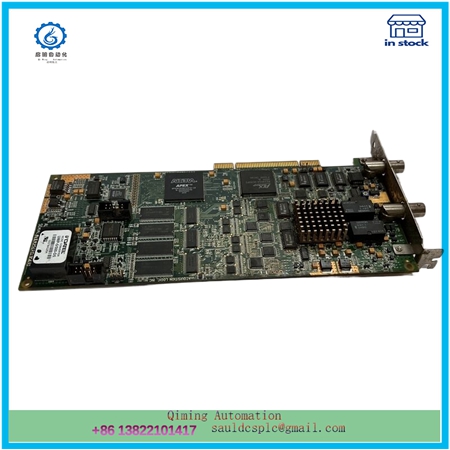

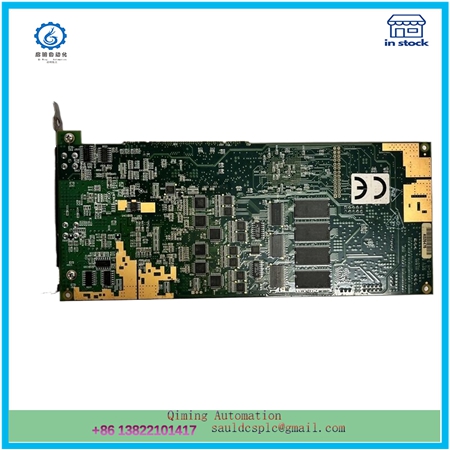

ACQUISITIONLOGI AL81G module

Description

The ACQUISITIONLOGI AL81G module is a highly functional and versatile device that is widely used in industrial automation and control systems. The following is a detailed description of the module:

1. Key Features:

1. **Communications and Control**

* The ACQUISITIONLOGI AL81G module provides deterministic control and PC connectivity, enabling users to easily integrate with automation systems.
* The module supports advanced software development tools, making control, data management, communication, and integration with business systems easier.

2. **Simulated Input Function**

* The AL81G module is designed to convert analog signals from sensors or other sources into digital signals that can be processed by PLC systems.
* It supports a variety of input ranges, such as 125mV, 250mV, 500mV, 1V, and 0-10V, 0-20mA, 4-20mA, and thermocouple signals, and has an input impedance of 50 ohms.
* The module has a high-resolution ADC (analog-to-digital converter) that can handle signals with a resolution of up to 16 bits, ensuring the accuracy and precision of the signal.

3. **Performance Parameters**

* The AL81G module provides a peak-to-peak bandwidth of DC-350MHz and a sampling rate of up to 1GS/s with 8-bit precision. It also offers a variety of sampling rate options, such as 1000, 500, 250, and 100MS/s, to meet the needs of different application scenarios.
* The module is equipped with 64MSamples of onboard sample memory and supports fast unloading during sampling to ensure the integrity and real-time nature of the data.

4. **Trigger and Control Functions**

The AL81G module supports pre-trigger, post-trigger, delayed sampling, and automatic rearming functions, providing users with flexible sampling control options.

5. **Connectivity and Compatibility**

* The AL81G module uses a BNC connector for analog signal input and trigger input/output, making it easy for users to connect and operate.
* This module is suitable for the BLII-D150A PLC system and can be seamlessly integrated with other automation equipment and systems.

2. Application Scenarios

The ACQUISITIONLOGI AL81G module has widespread applications in industrial fields such as power plants, refineries, and petrochemical plants. It can serve as an important component of process protection and control systems, converting reliable and accurate analog signals into digital signals to provide critical data support for automated control systems.

III. Installation and Maintenance

1. **Installation**

* The AL81G module can be easily installed into the BLII-D150A PLC system using the built-in mounting clip and connected to the system using the included ribbon cable.
* During installation, please ensure that you follow the instructions in the manual to avoid damaging the module or affecting the normal operation of the system.

2. **Maintenance**

* Regularly check the connections and fastenings of the modules to ensure a secure and reliable connection to the system.
* Clean the surface of the modules to remove dust and dirt to maintain good heat dissipation performance and operational stability.
* If you notice any module malfunctions or performance degradation, please contact the supplier or a professional maintenance personnel for inspection and replacement.

In summary, the ACQUISITIONLOGI AL81G module is a powerful, high-performance, easy-to-install and maintain analog input electronic module. It plays an important role in industrial automation and control systems, providing reliable data support and flexible sampling control options for users.
