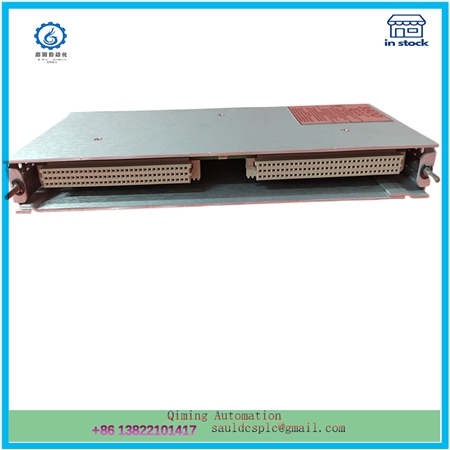

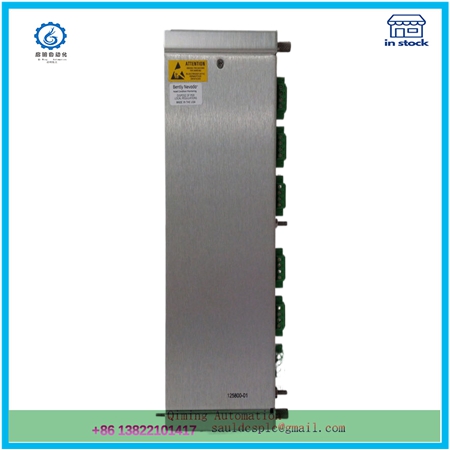

BENTLY 125800-01 Keyphasor I/O Module
¥6,540.00
🔔Module Number: 125800-01
⚠️Product status: Discontinued
🏚️Delivery time: In stock
🆕Product status: 100% new
🌍Sales country: All over the world
🥇Product situation: one year warranty
📮Contact me: Sauldcsplc@gmail.com
💬Wechat/Whatsapp :+86 13822101417
☀️Have a good day! Thanks for watching my website!
Description
The BENTLY 125800-01 module is a product developed by Bently Nevada, primarily used in industrial control and monitoring systems. The following is a detailed analysis of the module:
1、 Basic product information
Part number: 125800-01
Manufacturer: Bently Nevada
Series: 3500
Product type: Keyphasor input/output module (internal terminal)
Supply situation: Usually in stock (depending on the supplier’s situation)
Dimensions: approximately 24.2 cm x 11.2 cm x 2.5 cm (specific dimensions may vary slightly depending on product version or packaging method)
2、 Features and Applications
Mechanical equipment protection: The BENTLY 125800-01 module may be used to monitor and protect mechanical equipment, such as generators, pumps, motors, etc., in order to trigger corresponding protection actions in case of abnormalities.
Vibration monitoring: In a vibration monitoring system, this module may be used to receive signals from vibration sensors and trigger alarms or shutdowns when the vibration exceeds a predetermined threshold.
Temperature control: The module may be used to monitor the temperature in the device or system, and execute corresponding control and protection measures when the temperature is abnormal.
Electrical system protection: In electrical systems, modules can be used to detect parameters such as current and voltage to ensure the normal operation of electrical equipment and prevent overload or short circuits.
Control system integration: Modules may be used to integrate into the control system to achieve centralized control of different devices and processes.
Automation system: In an automation system, modules may execute automation logic and trigger corresponding control operations based on preset conditions.
Fault diagnosis: By monitoring the status and parameters of the equipment, the module can be used for fault diagnosis, helping to detect and solve problems in a timely manner.
Power distribution system: In the power system, modules may be used to control the distribution of electricity, ensuring the stability and safety of the power system.
3、 Special functions (Keyphasor function)
As part of the 3500/25 Enhanced Keyphasor Module, the BENTLY 125800-01 module has unique Keyphasor functionality. This function allows the module to receive signals from the alignment of the keyphasor markings on the shaft with the keyphasor sensor, use magnetic pickups or proximity probes to detect alignment, and convert the input signal into a digital keyphasor signal. This is crucial for precise monitoring and protection of mechanical equipment.
4、 Maintenance and troubleshooting
If the BENTLY 125800-01 module malfunctions during use, such as equipment not communicating or relay coil induction failure, corresponding measures need to be taken based on the specific system event list message. For example, for events marked with an asterisk (*), it may be necessary to replace the relay module as soon as possible or immediately. At the same time, it is necessary to check for faults in components such as the relay module, rack backplane, and relay input/output module.
5、 Summary
The BENTLY 125800-01 module, as a powerful industrial control and monitoring module, plays an important role in multiple fields such as mechanical equipment protection, vibration monitoring, temperature control, and electrical system protection. Its unique Keyphasor function provides strong support for precise monitoring and protection of mechanical equipment. During use, attention should be paid to module maintenance and troubleshooting to ensure its normal operation and maximum efficiency.
