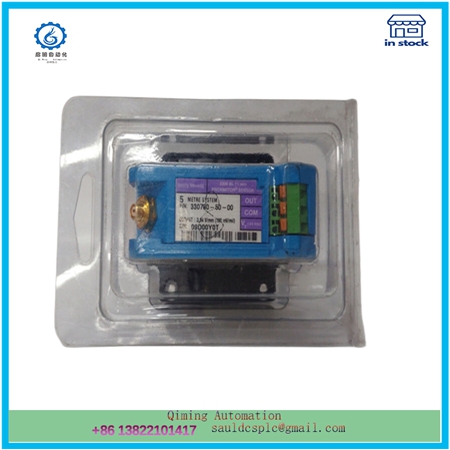

BENTLY 330780-50-00 Proximity Sensor

Description

The BENTLY 330780-50-00 module typically refers to a displacement transducer component produced by Bently Nevada (now GE Digital), which plays a critical role in vibration monitoring and mechanical protection systems. The following is a detailed introduction to this module:

1、 Basic Overview
Product Name: BENTLY 330780-50-00 Displacement Proximitor Assembly
Manufacturer: Bently Nevada (now GE Digital)
Application field: Mainly used for vibration monitoring and mechanical protection systems, such as monitoring of rotating machinery equipment such as steam turbines and compressors.
2、 Functional characteristics
Signal conversion:
This component can convert the analog vibration signals collected by the vibration sensor into electrical signals suitable for monitoring system processing (which may be digital or analog signals).
Signal amplification:
Some models of displacement proximitors may have signal amplification function, which can enhance the weak signal collected by the sensor and improve the sensitivity of the monitoring system.
Filtering function:
Through the filtering function, this component can filter out noise and interference, ensuring that the monitoring system receives clean and stable vibration signals.
Calibration and calibration:
Some displacement proxies also have calibration and calibration functions to ensure accurate signal transmission and matching between sensors and monitoring systems.
3、 Interface and Installation
Sensor Interface: The BENTLY 330780-50-00 module may have an interface suitable for connecting vibration sensors, capable of receiving vibration signals collected by the sensors.
Connection interface: This component is usually equipped with interfaces suitable for connecting to the monitoring system, such as BNC connectors, pin connectors, etc., for data exchange with the monitoring system.
Installation method: The preamplifier can be installed using either compact rails or traditional panel mounting, providing flexible installation options.
4、 Application scenarios
The BENTLY 330780-50-00 module is widely used in displacement or vibration measurement scenarios that require a large linear range, including but not limited to:

Axial (thrust) displacement measurement
Measurement of piston rod displacement or descent in reciprocating compressors
Measurement of inclined expansion difference of steam turbine
Tachometer and zero speed measurement
Phase reference (keyphase) signal measurement
In addition, this module is also suitable for displacement or vibration measurement in the frequency range of 0 to 8kHz, with typical applications including radial vibration and displacement, axial displacement, and keyphase measurement.

5、 Technical support and compatibility
Technical Support: If users encounter any problems or require technical support during use, they can contact the local sales and service representatives of Bently Nevada (now GE Digital).
Compatibility: This module is typically compatible with Bently Nevada (now GE Digital) monitoring systems, such as 3500 rack system monitoring. Meanwhile, it may also support monitoring systems from other brands, but specific compatibility needs to be confirmed according to the requirements of the monitoring system.
6、 Summary
The BENTLY 330780-50-00 module, as a high-performance displacement preamplifier component, plays an important role in vibration monitoring and mechanical protection systems. Its excellent signal conversion, amplification, filtering, calibration and calibration functions ensure that the monitoring system can accurately and stably receive vibration signals, thereby achieving real-time monitoring and analysis of equipment operation status. Meanwhile, the flexible installation method and wide range of application scenarios of this module make it one of the preferred products in the field of industrial monitoring.
