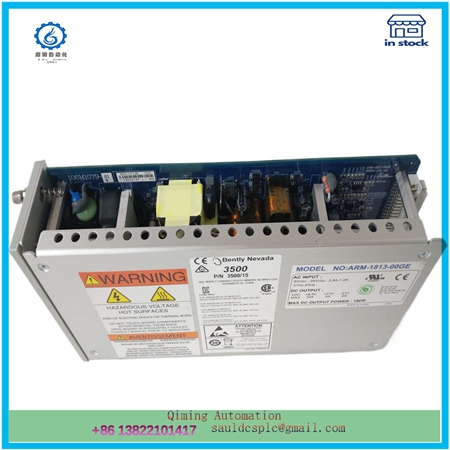

BENTLY 3500/15 106M1079-01 AC and DC Power Supplies

Description

The BENTLY 3500/15 106M1079-01 power module is a power input module designed specifically for vibration monitoring systems, typically produced by Bently Nevada, a subsidiary of General Electric (GE). The following is a detailed analysis of the power module:

1、 Product Overview
Model: BENTLY 3500/15 106M1079-01
Type: AC power module
Purpose: Mainly used to provide reliable power supply for vibration monitoring systems, ensuring the normal operation of sensors, monitors, and other equipment in the system.
2、 Main features
Power input types: Supports multiple power input types, including AC and DC power, and can adapt to different power environments.
Voltage range: Supports specific voltage ranges to adapt to different power supply situations, ensuring stable output under wide voltage fluctuations.
Power protection: Equipped with overcurrent protection and overvoltage protection functions, ensuring stable output of the power supply and preventing damage to the equipment due to high current or voltage.

Status indicator: Equipped with a status indicator light, it can visually display the status and activity of the power supply, making it easy for users to understand the operation status of the power supply and detect problems in a timely manner.
3、 Application field
Vibration monitoring system: mainly used for power supply vibration monitoring system, monitoring the vibration, bearing status, and mechanical health of rotating equipment.
Equipment health monitoring: By providing a stable power supply, it helps to ensure the normal operation of the equipment health monitoring system, timely identify and report possible mechanical problems.
Electrical equipment monitoring: It can be connected to the electrical equipment monitoring system to monitor the status of generators, motors, and other electrical equipment to prevent electrical faults.
Industrial automation system: In industrial automation, it can be used for power supply control systems, sensors, and actuators to ensure the normal operation of industrial processes.
Process control: In the chemical, manufacturing, and other process industries, it may be used in power supply process control systems to ensure monitoring and control of key parameters.
Power system monitoring: used to connect to the power system monitoring system and monitor vibration, temperature, and other key parameters in the power network.

Environmental monitoring: may be used to connect environmental monitoring systems, ensure the normal operation of environmental sensors, and monitor parameters such as temperature and humidity.
4、 Installation and Maintenance
Installation: Usually installed in the rack of the monitoring system, connected to the main monitoring unit through a backplane to provide the required power for the entire system.
Maintenance: Regularly inspect and clean the power module to ensure its normal operation. If any abnormalities or malfunctions are found, professional technicians should be contacted in a timely manner for repair or replacement.
5、 Summary
The BENTLY 3500/15 106M1079-01 power module plays an important role in vibration monitoring and industrial automation systems due to its stable power output, various protection functions, and wide application fields. For monitoring systems that require high reliability and stability, this power module is undoubtedly an ideal choice.
