BENTLY 3500-15 127610-01 AC power module

Description

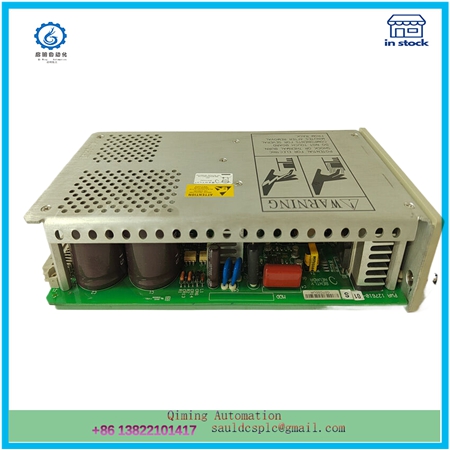

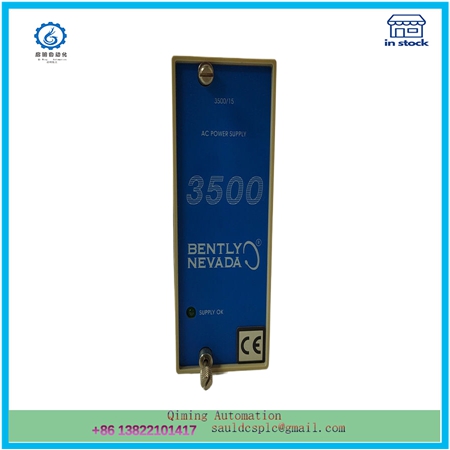

BENTLY 3500-15 127610-01 power module is an AC power module developed by Bently Nevada and is part of the 3500 series components. The following is a detailed introduction to the power module:

1、 Basic Overview
Model: BENTLY 3500/15 127610-01
Type: AC power module
Developer: Bently Nevada
Purpose: To provide power for vibration monitoring and protection systems, such as wind turbine monitoring, etc
2、 Design and installation
Modular design: The power module is a half height module that needs to be installed in a specially designed slot on the left side of the rack. The rack can accommodate one or two power sources (any combination of AC and/or DC), with either power source capable of supplying power to the entire rack.
Redundant design: When two power supplies are installed in the rack, the lower power supply serves as the main power supply and the upper power supply serves as the backup power supply. As long as a second power supply is installed, removing or inserting any power module will not interrupt the operation of the rack.
3、 Power input and output
Input voltage range: This power module can accept various input voltages, such as 100-240 VAC, 50/60 Hz, 2 A, etc.
Output voltage: Convert the input voltage to a voltage that can be used by other 3500 modules, such as 24 VDC, 5.5 A.

4、 Stability and reliability
Stability: The power module has a stable and reliable power output, which can meet the power requirements of sensors and monitoring equipment in various vibration monitoring systems.
Protection function: The module has overload protection and short circuit protection functions, which can automatically protect the equipment in case of overload or short circuit, ensuring the safe operation of the equipment.
5、 Application environment
Working temperature range: 0 ℃ to 60 ℃
DC output stability: ± 1%
Input/output insulation resistance: 500 VDC, greater than 10 M Ω
6、 Application field
The BENTLY 3500/15 127610-01 power module is widely used in various vibration monitoring and protection systems, such as condition monitoring of wind turbines, pumps, valves, gearboxes, and other equipment. By continuously monitoring the vibration characteristics of the equipment, the system can detect abnormal vibrations of key components in a timely manner, thereby detecting potential signs of failure in advance, taking preventive maintenance measures, and reducing downtime and losses caused by sudden failures.

7、 Price and Procurement
According to publicly available information, the price of the BENTLY 3500/15 127610-01 power module starts at approximately ¥ 13450.00, and the specific price may vary due to factors such as suppliers and promotional activities. When purchasing, it is recommended to contact authorized dealers or suppliers to ensure the quality of the product and the guarantee of after-sales service.

In summary, the BENTLY 3500-15 127610-01 power module is a powerful, stable, and reliable power supply device suitable for various vibration monitoring and protection systems.
