BENTLY 3500-15 127610-01 module

Description

BENTLY 3500-15 127610-01 module, according to publicly released information, mainly has two understanding directions: one is as a digital input module, and the other is as an AC power module. The following is a detailed introduction to these two understanding directions:

1、 As a digital input module
1. Functional features

Digital input function: used for monitoring and collecting digital input signals, such as switch status, sensor status, etc.
Multi channel: Equipped with multiple input channels, allowing for simultaneous monitoring of multiple digital input signals.
High precision: Provides high-precision signal acquisition to ensure accurate data recording and analysis.
Real time monitoring: equipped with real-time monitoring function to understand the status and operation of equipment at any time.
Communication interface: Supports multiple communication interfaces, such as Modbus, Ethernet, etc., for easy data transmission.
Alarm and notification: It has alarm function and can issue an alarm when abnormal situations are detected.
Fault detection: It can monitor the integrity of input signals and help identify sensor or circuit faults.
Data recording and storage: may support data recording and storage functions for subsequent analysis and reporting.
Durability: Designed for long-term stable operation in harsh industrial environmental conditions.
Temperature Range: Capable of operating within a wide temperature range, including extreme temperature conditions.
Configuration flexibility: It has configurable parameters to adapt to different application requirements.

2. Application scenarios

Usually used to monitor the status and performance of rotating equipment such as turbines, generators, compressors, etc.

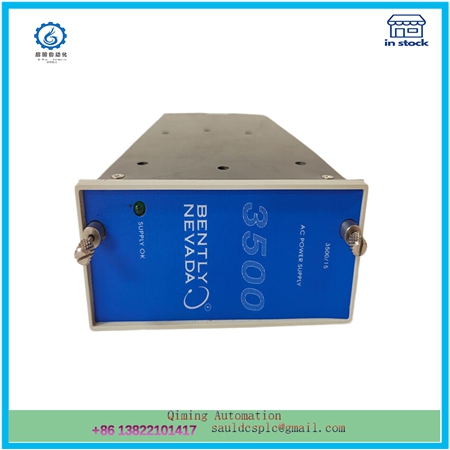

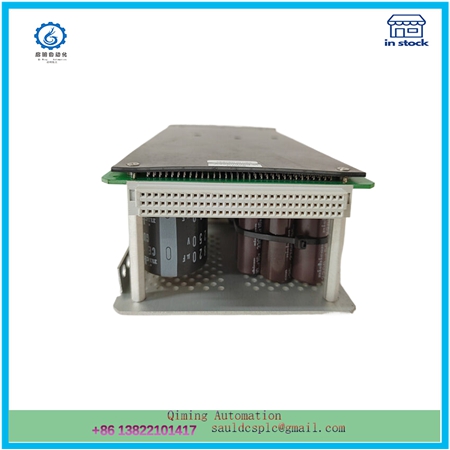

2、 As an AC power module
1. Product details

Modular design: As a half height module, it needs to be installed in a specially designed slot on the left side of the rack.
Redundant design: When two power supplies are installed in the rack, the lower power supply serves as the main power supply and the upper power supply serves as the backup power supply, ensuring power supply stability.
Power input and output: Accept various input voltages (such as 100-240 VAC, 50/60 Hz, 2 A) and convert them into voltages that can be used by other 3500 modules (such as 24 VDC, 5.5 A).
Stability and reliability: With stable and reliable power output, it meets the power requirements of sensors and monitoring equipment in vibration monitoring systems.
Protection function: It has overload protection and short circuit protection functions to ensure the safe operation of the equipment.
2. Working environment

The working temperature range is from 0 ℃ to 60 ℃, the DC output stability is ± 1%, and the input and output insulation resistance is 500 VDC, which is greater than 10 M Ω.
3. Application scenarios

Suitable for various vibration monitoring systems, meeting the power requirements of various sensors and monitoring equipment.
3、 Summary
BENTLY 3500-15 127610-01 module can be a high-precision digital input module for real-time monitoring and data analysis, depending on the specific configuration and application scenario; It can also be a stable and reliable AC power module that provides power support for other monitoring devices. In practical applications, users should choose the appropriate module type based on their specific needs.

Please note that the above information may change with product updates. It is recommended to consult the latest product manual or contact the supplier for the most accurate information.
