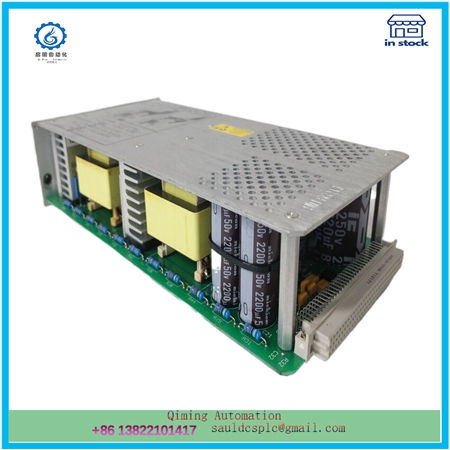

BENTLY 3500/15 127610-01 power module

Description

The BENTLY 3500/15 127610-01 power module is a power supply device developed by Bently Nevada (now a brand under GE Measurement&Control), mainly used in vibration monitoring systems and mechanical protection systems, providing stable and reliable power to other modules and sensors in the system. The following is a detailed analysis of the power module:

1、 Product Overview
Model: BENTLY 3500/15 127610-01
Type: AC power module
Manufacturer: Bently Nevada (now GE Measurement&Control)
Series: Bently Nevada 3500 Series
2、 Main features
Modular design: The power module is a half height module that needs to be installed in a specially designed slot on the left side of the rack. The rack can accommodate one or two power sources (any combination of AC and/or DC), with either power source capable of supplying power to the entire rack.

3500 15 127610-01
Redundant design: When two power supplies are installed in the rack, the lower power supply serves as the main power supply and the upper power supply serves as the backup power supply. As long as a second power supply is installed, removing or inserting any power module will not interrupt rack operation, improving system reliability and availability.
Power input and output: The power module accepts various input voltages (such as 100-240 VAC, 50/60 Hz, 2 A) and converts them into voltages that other 3500 modules can use (such as 24 VDC, 5.5 A). This enables the power module to adapt to various power environments and meet the needs of different devices.
Stability and reliability: The power module has a stable and reliable power output, which can meet the power requirements of sensors and monitoring equipment in various vibration monitoring systems. At the same time, the module also has overload protection and short circuit protection functions, which can automatically protect the equipment in case of overload or short circuit, ensuring the safe operation of the equipment.
Application environment: The operating temperature range of the module is from 0 ℃ to 60 ℃, the DC output stability is ± 1%, and the input and output insulation resistance is 500 VDC, greater than 10 M Ω. These parameters ensure that the power module can maintain excellent performance in various working environments.

3、 Application field
The BENTLY 3500/15 127610-01 power module is widely used in vibration monitoring systems and mechanical protection systems in industrial fields, such as power plants, petrochemical plants, steel plants, etc. It can provide stable and reliable power support for sensors, monitors, and other devices in the system, ensuring the normal operation of the entire system and the accuracy of monitoring data.

4、 Purchasing suggestions
When purchasing a BENTLY 3500/15 127610-01 power module, it is recommended to consider the following factors:

System requirements: Clarify the power supply and configuration requirements of the system, including the required input voltage range, output voltage, and current parameters.
Redundancy requirement: Based on the reliability and availability requirements of the system, consider whether to configure redundant power modules to improve system redundancy.
Brand and Quality: Choose well-known brands and high-quality products to ensure product stability and reliability.
After sales service: Understand the supplier’s after-sales service policy and technical support capabilities in order to obtain timely technical support and maintenance services during use.
In summary, the BENTLY 3500/15 127610-01 power module is a powerful, stable and reliable power supply device suitable for various vibration monitoring systems and mechanical protection systems. During the selection and use process, factors such as system requirements, redundancy requirements, brand quality, and after-sales service should be fully considered to ensure the normal operation of the system and the accuracy of monitoring data.
