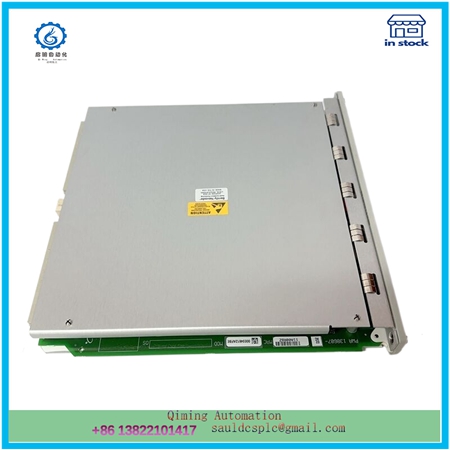

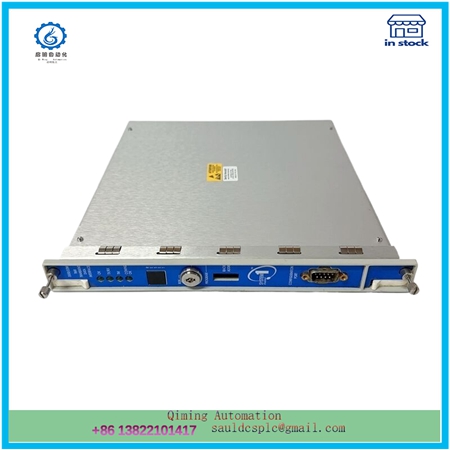

BENTLY 3500/22M 138607-02 Monitored Proximity Sensor Module

Description

The **BENTLY 3500/22M 138607-02** is part of the Bently Nevada 3500 Series, which focuses on condition monitoring and machinery protection. The **3500/22M** specifically refers to a **Machinery Protection Module** that is designed for monitoring parameters such as vibration, speed, and other critical indicators in rotating machinery.

### Overview of BENTLY 3500/22M 138607-02

– **Product Type**: The **3500/22M** module is a **Monitored Proximity Sensor Module** within the Bently Nevada 3500 Series. It uses proximity sensors to measure displacement and position of machinery components, like shaft alignment.

– **Functionality**:
– **Proximity Measurement**: The module collects data from proximity probes to monitor the position of rotating shafts relative to stationary components, providing critical information on alignment and condition.
– **Signal Conditioning**: It processes the signals from the sensors, ensuring that the data is accurate and reliable for further analysis within the monitoring system.
– **Alarm and Trip Levels**: Users can configure alarm and trip levels that will trigger alerts for potential mechanical issues, allowing for proactive maintenance.

– **Applications**:
– **Industries**: This module is utilized in various industries, including power generation, petrochemical, and manufacturing, particularly for large rotating equipment like turbines, compressors, and generators.
– **Condition Monitoring**: Supports condition monitoring programs designed to enhance the reliability and longevity of critical machinery.

### Documentation and Support
To obtain detailed specifications, installation manuals, and operational guidelines for the **BENTLY 3500/22M 138607-02**, you can take the following actions:

– **Access Technical Manuals**: Visit the Bently Nevada website or consult official documentation for detailed user manuals and installation guides.
– **Contact Customer Support**: Reach out to Bently Nevada’s technical support team for direct assistance regarding specific operational or configuration questions.

If you have any further questions about this module or related applications, or if you need help with something else, feel free to ask!
