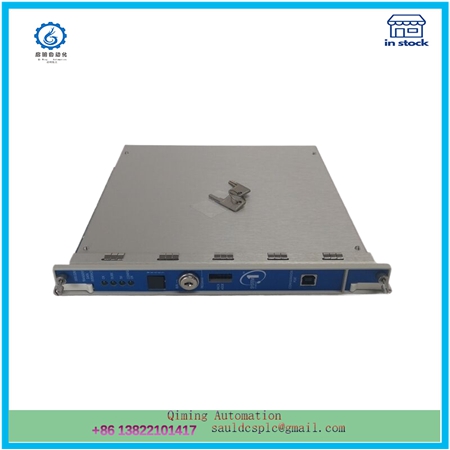

BENTLY 3500/22M 288055-01 module

Description

BENTLY 3500/22M 288055-01 module is a high-performance monitoring module produced by Bently Nevada (a brand under General Electric GE), mainly used for vibration monitoring and mechanical fault diagnosis of industrial equipment. The following is a detailed introduction about the module:

1、 Main functions
Data Collection and Transmission: This module combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors (such as TDXnet) to continuously collect steady-state and transient dynamic (waveform) data, and transmit this data to the host software via an Ethernet link.
Vibration Monitoring: Equipped with high-precision vibration monitoring function, it can monitor the vibration status of equipment in real time, including parameters such as vibration velocity, acceleration, and displacement. By analyzing vibration data, potential faults and problems of equipment can be identified in a timely manner, providing important reference information for equipment maintenance and upkeep.
Fault diagnosis: By collecting and analyzing vibration data, this module can identify and diagnose mechanical faults such as bearing wear, imbalance, looseness, etc., and promptly issue alarms or trigger maintenance operations.
2、 Technical features
High precision monitoring: Using high-precision vibration sensors and advanced signal processing technology, it can accurately capture the vibration signals of the equipment and conduct detailed analysis and processing.
Multiple vibration analysis functions: capable of conducting various vibration analyses, such as spectrum analysis, trend analysis, fault diagnosis, etc., to help users comprehensively understand the operating status and potential problems of the equipment.
Remote monitoring and alarm: By communicating with devices such as the upper computer or PLC, remote monitoring and alarm can be achieved. When there is an abnormality or malfunction in the equipment, the technical personnel can be notified in a timely manner for handling.
High reliability and stability: It has high reliability and stability, suitable for long-term operation in industrial environments, and can effectively monitor and protect the operating status of key equipment.
Flexible configuration: Provides multiple configuration options that can be customized according to specific application needs, including input channel count, sampling rate, alarm settings, etc.
Rich communication interfaces: Supports multiple communication interfaces, facilitating data exchange and integration with other monitoring or control systems.
3、 Application Fields
BENTLY 3500/22M 288055-01 module is widely used in various industrial equipment and process control systems, especially playing an important role in monitoring rotating machinery such as turbines, generators, and compressors. By monitoring the axis displacement and vibration of the equipment in real time, we assist users in preventive maintenance and troubleshooting, improving the reliability and stability of the equipment.

4、 Precautions
Before use, please ensure that the module has been correctly installed and connected to the corresponding monitoring system.
Reasonably configure the parameters and settings of the module according to actual application needs.
Regularly inspect and maintain modules to ensure their normal operation and accurate monitoring.
In summary, BENTLY 3500/22M 288055-01 module is a powerful, stable, and flexible industrial equipment monitoring module that provides important technical support for equipment maintenance and upkeep.
