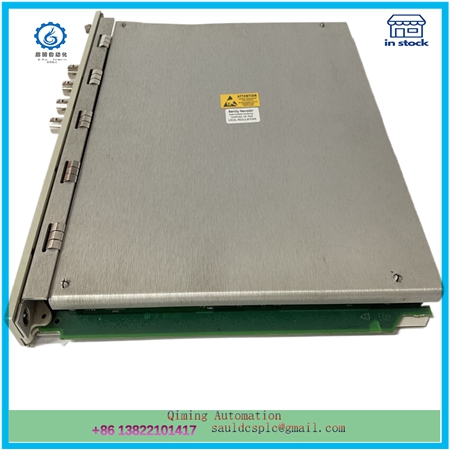

BENTLY 3500/42M 176449-02 Proximitor. Seismic Monitor

Description

The BENTLY 3500 42M 176449-02 module is not a specifically defined “power module”, but a vibration monitoring relay module used to monitor and protect various machinery and equipment. However, as the module does require power support to operate in the system, the following is an overview of its related power characteristics and the main functions of the module:

1、 Power characteristics (hypothetical description, specific power specifications need to refer to product manual)
Power supply demand: Although the BENTLY 3500 42M 176449-02 module itself does not exist directly as a power module, it usually operates in the BENTLY 3500 monitoring system, which may have a unified power supply. This module may accept standard industrial power supply voltages, such as 24Vdc, and the specific voltage level needs to refer to the product manual or technical specification table.
Power stability: As a precision monitoring equipment, the BENTLY 3500 42M 176449-02 module has high requirements for power stability to ensure the accuracy and reliability of measurement results.

2、 Main functions
Vibration monitoring:
Real time monitoring of vibration levels of rotating machinery equipment helps evaluate the operational status of the equipment.
Provide up to 24 bit resolution and low noise levels to ensure the accuracy of measurement results.
Support multiple adjustable input ranges to adapt to the amplitude requirements of different signal sources.
Temperature monitoring:
In addition to vibration, it can also monitor the temperature of the equipment and provide comprehensive health monitoring.
Ability to remotely monitor temperature conditions and provide insights into mechanical thermal performance.
Alarm and protection functions:
When vibration or temperature exceeds the normal range is detected, an alarm can be triggered and a protective mechanism can be activated to prevent further damage to the equipment.
Has relay outputs that can be configured to activate alarms, trip off sequences, or trigger other necessary actions.
Compatibility and Integration:
Compatible with the BENTLY 3500 monitoring system, allowing seamless integration into existing monitoring settings.
It can measure and analyze vibration levels in real-time, including acceleration, velocity, and displacement.
User interface and settings:
Has an intuitive interface, easy to set up, program, and monitor.
Support the use of 3500 rack configuration software to program each channel for monitoring and reporting configuration.
Automatic calibration and high-precision measurement:

Equipped with built-in automatic calibration function, it can calibrate each channel during the measurement process, improving measurement accuracy and reliability.
The high-precision measurement characteristics ensure accurate measurement results over a wide dynamic range.
Wide operating temperature range:
Adapted to various industrial environments, with a wide range of working temperatures, such as from -40 ° C to+85 ° C.
3、 Conclusion
Although the BENTLY 3500 42M 176449-02 module itself is not a power module, it plays a crucial role in the BENTLY 3500 monitoring system, providing important support for equipment health monitoring and protection through real-time monitoring of parameters such as vibration and temperature. For specific power specifications and wiring requirements, it is recommended to refer to the product manual or contact the manufacturer for detailed information.
