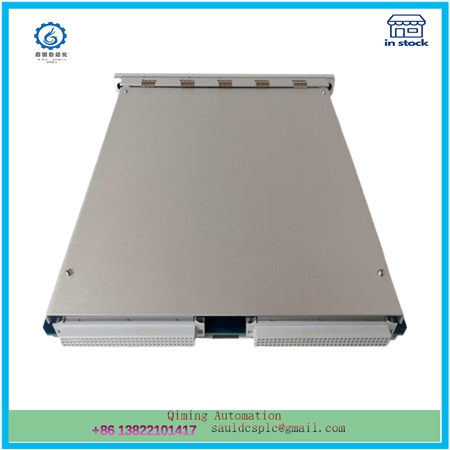

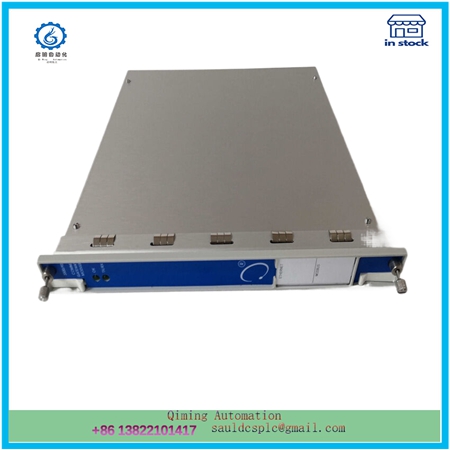

BENTLY 3500-92 136180-01 communication gateway module

Description

BENTLY 3500-92 136180-01 module is a communication gateway module produced by BENTLY NEVADA in the United States. It has a wide range of communication capabilities and multiple interface options, suitable for integrating monitoring data and status with process control and other automation systems. The following is a detailed introduction to the module:

1、 Product Overview
Brand and Model: BENTLY NEVADA 3500/92 136180-01
Type: Communication Gateway Module
Origin: United States
Main function: Integrate monitoring data and status of all frameworks with process control and other automation systems through Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols.
2、 Communication ability
Communication protocol: Supports Modicon Modbus ® (via serial communication), Modbus/TCP (serial Modbus for TCP/IP Ethernet communication), and Bentley protocol (communicating with 3500 framework configuration and data acquisition software packages).
Network interface: Connected to a 10BASE-T star topology Ethernet network via RJ45.

I/O module options: including RS232/RS422 I/O modules, RS485 I/O modules, Ethernet/RS232 I/O modules, and Ethernet/RS485 I/O modules, among other options.
3、 Product Features
Modbus register function of configuration: It can provide the same function as the initial value register, enhancing the flexibility and configuration capability of the module.
Status indicator LED: including OK LED (indicating that 3500/92 is operating normally) and TX/RX LED (indicating that 3500/92 is communicating with other modules in the 3500 frame).
Widely applicable scenarios: Suitable for multiple industrial fields such as chemical, power, steel, metallurgy, etc.
4、 Specification parameters
Specifications and dimensions: may vary depending on specific models and configurations, but there are generally standard external dimensions.
Working temperature: usually between -20 ° C and 100 ° C, depending on the actual usage environment and conditions.
Power supply voltage and current: generally 220V voltage and 5A current, but may vary depending on the specific model.
5、 Price and Purchase
Price: Prices may vary depending on market supply and purchase quantity. Generally speaking, the price of this module ranges from several thousand to tens of thousands of yuan.
Purchasing channels: You can purchase through Bentley’s official channels, authorized distributors, or professional industrial automation equipment suppliers.
6、 Summary
BENTLY 3500-92 136180-01 module, as a high-performance communication gateway module, has been widely used in the field of industrial automation due to its extensive communication capabilities and flexible configuration options. Users can choose appropriate models and configurations based on their actual needs and budget to achieve efficient data integration and process control.
