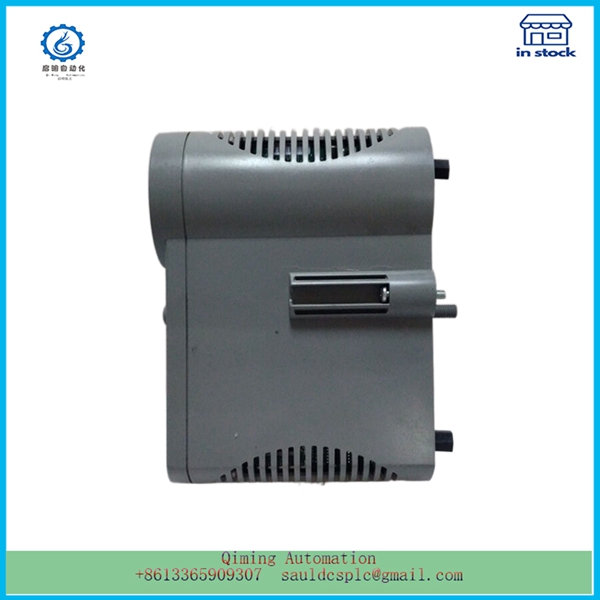

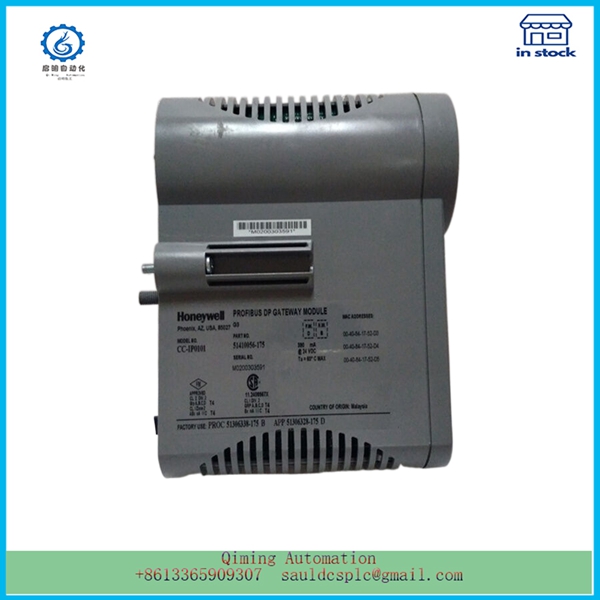

CC-IP0101 51410056-175 | HONEYWELL | Digital switch power supply hardware

Description

CC-IP0101 51410056-175 | HONEYWELL | Digital switch power supply hardware

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Digital control technology can be used for different topologies [9], and this design only takes the BUCK topology as an example. The switch power supply of CC-IP0101 51410056-175 topology mainly consists of several parts, including input part, main circuit, sampling circuit, protection circuit, control circuit, etc. Its structural diagram is shown in Figure 1.
The design of the input section mainly includes the design of the input rectifier/filter section and the design of the input filtering capacitor. The input rectification/filtering circuit usually consists of three to five parts: EMI filter, starting surge current limiter, rectification stage, and input filtering capacitor [7], as shown in Figure 2.

Firstly, choose an input rectifier, which typically uses bridge diode rectification. The main parameters to be considered for CC-IP0101 51410056-175 are: forward average current, surge current, DC breakdown voltage, and expected dissipated power. When the circuit is started, the surge current may be 10 times higher than the input current value during normal operation. Therefore, a thermistor is usually connected to the input terminal of the power supply to protect the rectifier. The resistance value of a thermistor at low temperatures is (6-12) V, and after heating, the resistance value is generally only (0.5-1) V.
