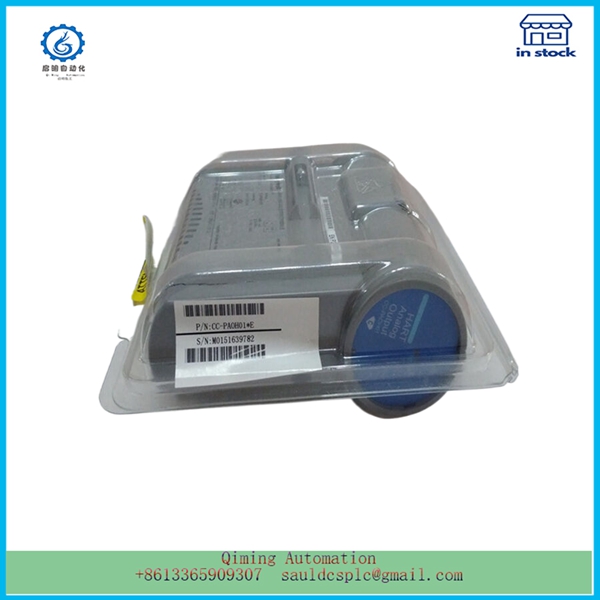

CC-PAOH01 51405039-175 | HONEYWELL | Ability to resist harmonic interference

Description

CC-PAOH01 51405039-175 | HONEYWELL | Ability to resist harmonic interference

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

There are three main measures for harmonic control: first, active control. CC-PAOH01 51405039-175 starts from the harmonic source itself and improves the electrical equipment to prevent or reduce the generation of harmonics; The second is end to end governance, which starts from the devices or systems affected by harmonics and improves their ability to resist harmonic interference; The third is passive governance, which means installing power filters to prevent harmonics generated by harmonic sources from injecting into the power grid, or to prevent harmonics from flowing into the load end of the power system.

Due to the wide range and complexity of harmonic sources, active governance methods are affected by factors such as equipment structure, efficiency, cost, and reliability, and can only solve some problems. Receiver side governance methods and passive governance methods are still the main methods for addressing power harmonic problems at present. For example, suppressing harmonic resonance amplification caused by reactive power compensation capacitors through series detuning reactors, filtering by installing passive power filters and active power filters in the system, and so on.

CC-PAOH01 51405039-175 Harmonic Resonance Suppression and Application of Series Reactors
Harmonic resonance and amplification caused by reactive power compensation capacitors

When the system contains harmonics, the reactive power compensation capacitor will resonate in parallel with the system impedance, resulting in harmonic amplification. Figure 3 shows an example of 5th harmonic resonance caused by a compensating capacitor.
