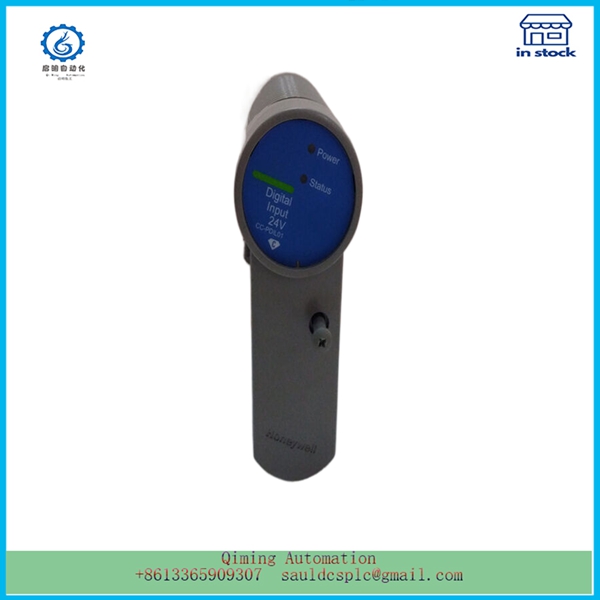

CC-PDIL01 51405040-175 | HONEYWELL | Load harmonic current reactor

Description

CC-PDIL01 51405040-175 | HONEYWELL | Load harmonic current reactor

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The fixed load harmonic current and grid side harmonic current are Ilh and Ish, respectively. The grid harmonic voltage of CC-PDIL01 51405040-175 is Ush, and the grid harmonic equivalent impedance and filter harmonic impedance are Zsh and Zfh, respectively. The equation describing the filtering characteristics of the passive power filter can be obtained from its harmonic equivalent circuit:

In the harmonic frequency series resonance state, the filtering branch exhibits a very low impedance to the harmonic current, which is usually significantly lower than the equivalent impedance of the grid to the harmonics. Therefore, most of the harmonic current will be diverted by the filter and no longer flow into the grid, making Ish significantly smaller than Ilh, thus achieving good filtering effect. The harmonic voltage in the power grid can also generate harmonic currents in passive filters, and this part of the current needs to be controlled at a lower level during filter design.

For power frequency fundamental voltage, a passive filter is equivalent to a capacitor that can compensate for the reactive power required by the load.

Usually, one tuning branch can only filter out harmonics of a single frequency. CC-PDIL01 51405040-175 requires multiple tuning branches to be used when filtering out multiple harmonics, tuning separately to different harmonic frequencies. The filtering characteristics obtained by tuning three tuning branches at the 5th, 7th, and 11th harmonic frequencies are shown in Figure 12.
