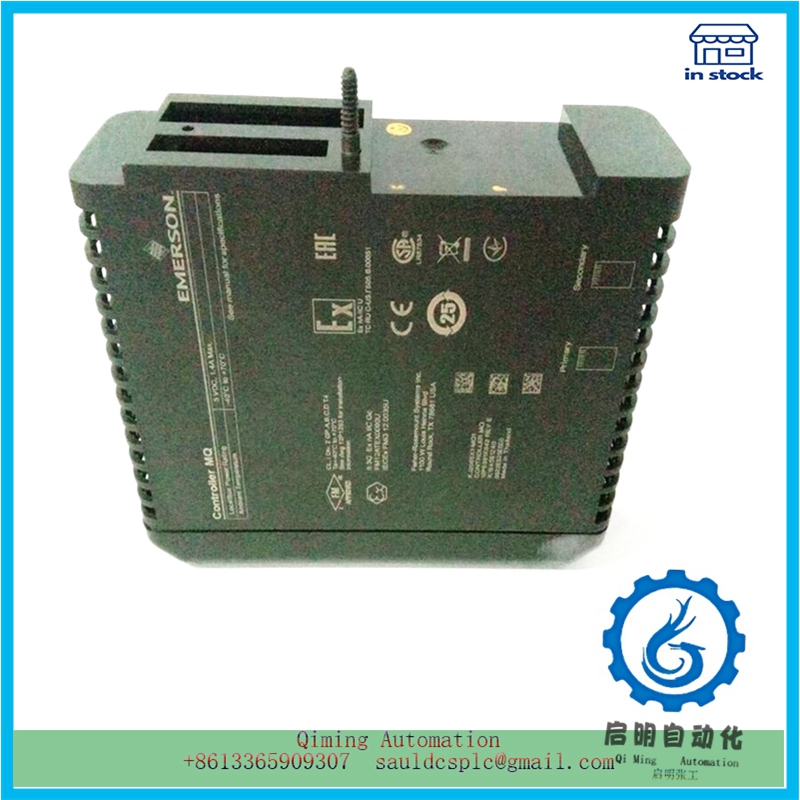

CE3008 | EMERSON/DELTA V | DCS Add storage module

Description

CE3008 | EMERSON/DELTA V | DCS Add storage module

1. CE3008  Finding faulty equipment
2. Basic troubleshooting sequence
3. Maintenance Overview
4. General troubleshooting steps
5. Replacement of components
6. Add storage
CE3008  Finding faulty equipment
The indicator lights and internal equipment of SRPLC are beneficial for troubleshooting the entire control system of the PLC control cabinet. The programmer is the main diagnostic tool and can be easily plugged into the PLC control cabinet. On the programmer, you can observe the status of the entire control system. When you search for faults in the control system with the PLC control cabinet as the core, as a habit, you should bring a programmer.
Basic troubleshooting sequence
Present the following questions and negate each one based on the reasonable actions found. Replace various modules in SR step by step until all faults are resolved. All major corrective actions can be completed by replacing modules. Except for a screwdriver and a multimeter, there is no need for special tools, oscilloscopes, advanced precision voltmeters, or special testing programs.
CE3008  Maintenance Overview
Generally, all types of PLC control cabinets are designed with a long-term uninterrupted working system. However, there are occasional places where actions need to be modified, and it is important to quickly find the location and modify them. Modifying actions that occur outside the PLC control cabinet takes a lot of time.
