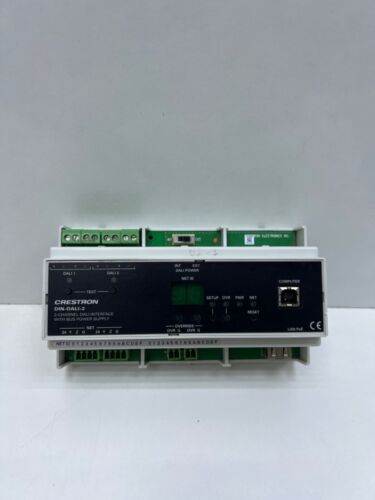

CRESTRON DIN-DALI-2 DIN Rail DALI Interface

Description

The **Crestron DIN-DALI-2** is a 2-channel Digital Addressable Lighting Interface (DALI) device designed for integration into Crestron control systems. It is specifically engineered for use with DALI lighting systems, providing communication and control for lighting fixtures in commercial and residential settings. Below are key details regarding its features, specifications, applications, and installation.

### Overview of Crestron DIN-DALI-2

1. **Functionality:**
– The DIN-DALI-2 provides a DALI interface that allows for the control of DALI-compliant lighting fixtures. This includes tasks such as dimming, scene control, and the management of lighting presets.

2. **Design:**
– **DIN Rail Mountable:** The device is designed to mount on standard DIN rails, making it suitable for integration into electrical distribution panels and control cabinets.
– **Compact Size:** Space-efficient architecture allows for multi-device setups within limited spaces.

### Key Features

1. **Two DALI Channels:**
– Allows for control of two separate DALI networks or zones, which can independently manage multiple DALI devices and fixtures.

2. **Integration with Control Systems:**
– Seamlessly integrates with Crestron control systems, allowing for a comprehensive approach to building automation, including lighting control, HVAC, and more.

3. **Flexible Configuration:**
– Supports multiple DALI devices on each channel, enabling scalable lighting solutions for a variety of spaces.

4. **Status Monitoring:**
– Provides real-time feedback on the status of connected fixtures, including dimming states and fault notifications, helping to maintain operational efficiency.

5. **User Programming:**
– Programmable via Crestron’s software tools, such as SIMPL Windows or Connected, allowing for customized lighting logic and user interfaces.

### Specifications

– **Power Supply:** Typically requires a low-voltage power supply, often powered via the Crestron control network.
– **DALI Compatibility:** Fully compliant with the DALI 2 specification, ensuring interoperability with a wide range of DALI lighting fixtures.
– **Communication Protocols:** Communicates via the DALI protocol, which is specifically designed for efficient control over lighting.

### Applications

1. **Commercial Spaces:**
– Commonly employed in office buildings, retail environments, and educational institutions to control lighting systems efficiently.

2. **Residential Applications:**
– Used in smart home environments where homeowners want to automate and control their lighting.

3. **Theater and Entertainment Venues:**
– Facilitates nuanced lighting control in performance settings, allowing for scene changes and specialized effects.

4. **Public Venues:**
– Can be used in environments such as airports, museums, and conference centers where dynamic lighting control is essential for functionality and ambiance.

### Installation

1. **Mounting:**
– Install the DIN-DALI-2 on a standard DIN rail in a controlled environment, ensuring adequate space for ventilation and access to wiring.

2. **Wiring:**
– Connect the DALI output to the corresponding DALI lighting fixtures in accordance with the device’s wiring diagram and specifications. Ensure that the total connected load adheres to DALI standards.

3. **Configuration:**
– Use Crestron software for configuration and programming, allowing customization of lighting controls, scenes, and functionalities.

### Maintenance and Support

1. **Routine Inspections:**
– Periodically verify connections and the physical integrity of the unit.

2. **Firmware Updates:**
– Regularly check for updates to firmware or software configurations to ensure optimal performance and security.

3. **Technical Support:**
– For troubleshooting, repairs, or inquiries, users should contact Crestron’s support or access their online resources.

### Documentation

For complete technical specifications, user manuals, and installation guidelines, refer to the official **Crestron** documentation available on their website or the product’s support page.
