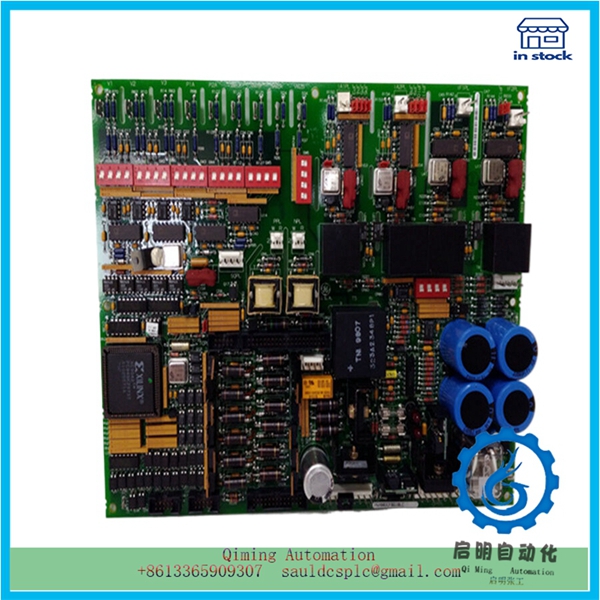

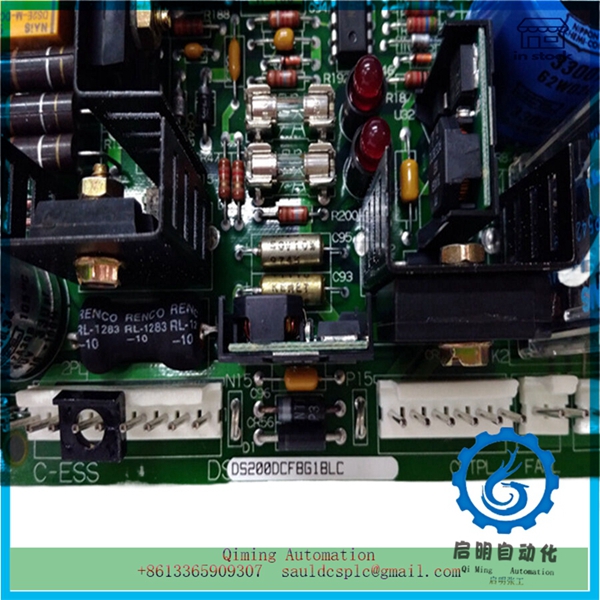

DS200DCFBG1BLC | GE | Double coil output module

Description

DS200DCFBG1BLC | GE | Double coil output module

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Double coil output is not suitable. If the DS200DCFBG1BLC  of the same component are used twice or more in the same ladder diagram, it is called dual coil output or coil reuse. Double coil output is one of the common pitfalls for beginners in ladder diagrams. In dual coil output, only the last coil is valid, while the previous coil is invalid. This is determined by the scanning characteristics of the PLC.
The CPU of DS200DCFBG1BLC  operates in a cyclic scanning mode. It generally includes five stages (as shown in the figure): internal diagnosis and processing, communication with peripherals, input sampling, user program execution, and output refreshing. When the mode switch is in STOP, only the first two stages are executed: internal diagnosis and processing, and communication with external devices.

The DS200DCFBG1BLC  sequentially reads the status of each input and stores it in an internal unit called the input image register. When entering the program execution phase, if the input state changes, the corresponding unit information of the input image area will not change accordingly. Only in the input sampling phase of the next scanning cycle, the corresponding unit information of the input image area will change. Therefore, the PLC will ignore the pulse changes of the switch quantity at the input end that are smaller than the scanning cycle.

Mailbox：sauldcsplc@gmail.com |DS200DCFBG1BLC
www.abbgedcs.com | Qiming Industrial Automation| Simon +86 13822101417

We may provide the information of this product:
Guidance manual PDF /Datasheet/ Weight/ Size/ Orignal country/ Prodcuct COO & COM & COC
Certificate of conformity / Certificate of Origin / Certificate of Origin /Operation method
Delivery time/ Provide a one-year warranty / Brand New Original Authentic
