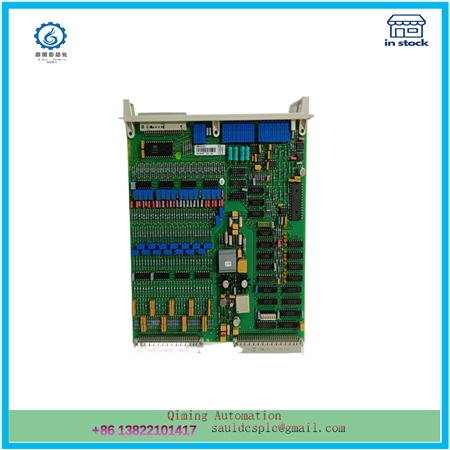

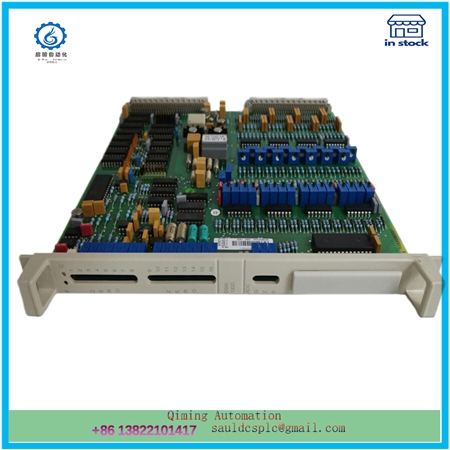

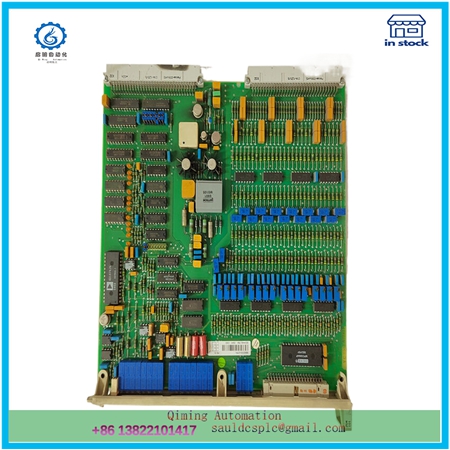

DSAI130D 3BSE003127R1 | ABB | analog input board

Description

DSAI130D 3BSE003127R1 | ABB | analog input board

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The **ABB DSAI130D** (part number **3BSE003127R1**) is an analog input board that belongs to the ABB automation systems, specifically designed for use within the **AC 800M** control system. This board is typically utilized in industrial automation applications, contributing to the monitoring and control of various processes by acquiring analog signals from field devices.

### Key Features of the DSAI130D Analog Input Board:

1. **Input Channels:**
– The DSAI130D board features multiple input channels (usually 16 channels), allowing for the simultaneous acquisition of analog signals from different sources, such as sensors and transmitters.

2. **Signal Types:**
– It supports various types of analog signals, commonly 4-20 mA, 0-10 V, and other standard signal ranges, making it versatile for different applications.

3. **High Accuracy:**
– The board is designed to provide high accuracy and reliability in reading analog inputs, ensuring that the control system has precise data for processing.

4. **Isolation:**
– The input channels typically feature electrical isolation, which helps protect the control system from noise and potential damage from field devices, enhancing system robustness.

5. **Signal Conditioning:**
– The board often includes signal conditioning capabilities, improving the quality of the signals received and preparing them for analog-to-digital conversion.

6. **Modular Design:**
– It is commonly part of a modular system architecture, allowing for easy installation, replacement, and expansion of the control system without significant downtime.

7. **Diagnostics:**
– Built-in diagnostic features may provide valuable information regarding the status of the input channels, facilitating troubleshooting and ensuring smooth operation.

### Applications:

The DSAI130D analog input board is used in various applications, including:

– **Process Control:** Monitoring variables such as temperature, pressure, flow, and level in process industries.
– **Manufacturing Automation:** Collecting data from shop floor devices and integrating it into the control system for real-time monitoring and decision-making.
– **Building Management Systems:** Managing data from HVAC systems, lighting controls, and other building systems to maintain efficiency and comfort.

### Documentation:

To obtain more detailed specifications, usage instructions, and installation guidelines for the DSAI130D analog input board, you can refer to the official ABB website or the product documentation available through ABB’s technical support. Datasheets, user manuals, and installation guides often provide essential information for proper integration and utilization of the board within your automation system.

===========================================================================================================
