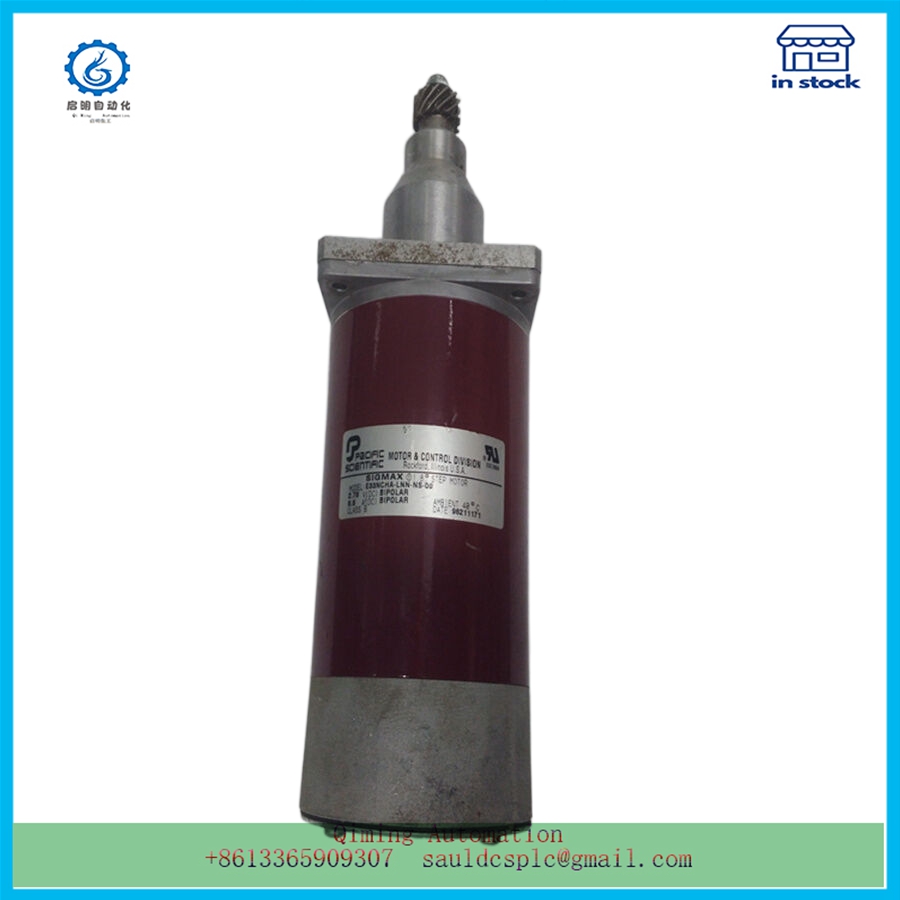

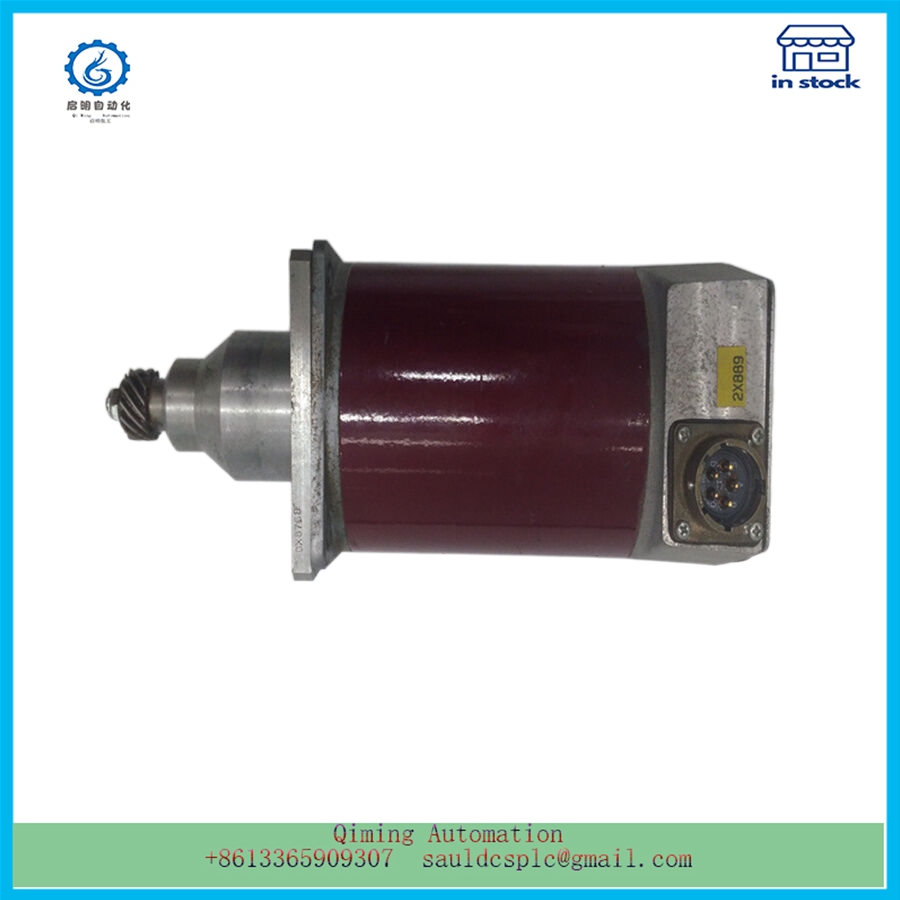

E33NCHA-LNN-NS-00 | PACIFIC | Optimizing communication for motor drive

Description

E33NCHA-LNN-NS-00 | PACIFIC | Optimizing communication for motor drive

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Usually, drives have many parameters that need to be configured and parameterized. “You need to send the set value from the controller to the drive,” said Michael Bowne, Executive Director of PI User Organization North America. The controller can be a programmable logic controller (PLC) or an industrial PC, or it can be a dedicated controller for motors.
Then the E33CHA-LNN-NS-00 driver sends back the actual values, such as torque, current, speed, position, set slope and unit, and other parameters. In Profinet, these interfaces are defined by the application class. Actual values and set values (especially actual values) can be sent back to the central controller from the driver, or the driver can communicate with the driver.

Use Profinet (Ethernet based) for centralized control. It can be a simple object, such as a pump or fan in process control applications, typically equipped with a simple open-loop driver. There is no feedback, or if there is, E33CHA-LNN-NS-00 is also from the encoder or servo. There is no need for clock synchronization to run, as this is a very simple application. The cycle time is approximately several tens of milliseconds. Other applications may require more complex objects, such as single axis positioning that sends position information from the PLC to the driver.

Mailbox：sauldcsplc@gmail.com |E33NCHA-LNN-NS-00
www.abbgedcs.com | Qiming Industrial Control | Simon +86 13822101417
